The customer satisfaction is our primary target. We uphold a consistent level of professionalism, quality, credibility and service for Low price for 6090 A1 Pen Bottle Stone Glass Metal PVC Wood Acrylic Cup Crystal Label Printing Machine Inkjet Flatbed UV Digital Canvas Cellphone Printer with Rotary. With a wide range, good quality, fair rates and great services, we are going to be your ideal small business partner. We welcome new and outdated prospects from all walks of lifestyle to get in touch with us for future company associations and achieving mutual accomplishment!
The customer satisfaction is our primary target. We uphold a consistent level of professionalism, quality, credibility and service for China Printing Machine and Cell Phone Printer. With its rich manufacturing experience, high-quality products and solutions, and perfect after-sale service, the company has gained good reputation and has become one of the famous enterprise specialized in manufacturing series. We sincerely hope to establish business relation with you and pursue mutual benefit.
Printing table size
1600mm×1000mm
Max material weight
50kg
Maximum material height
100mm

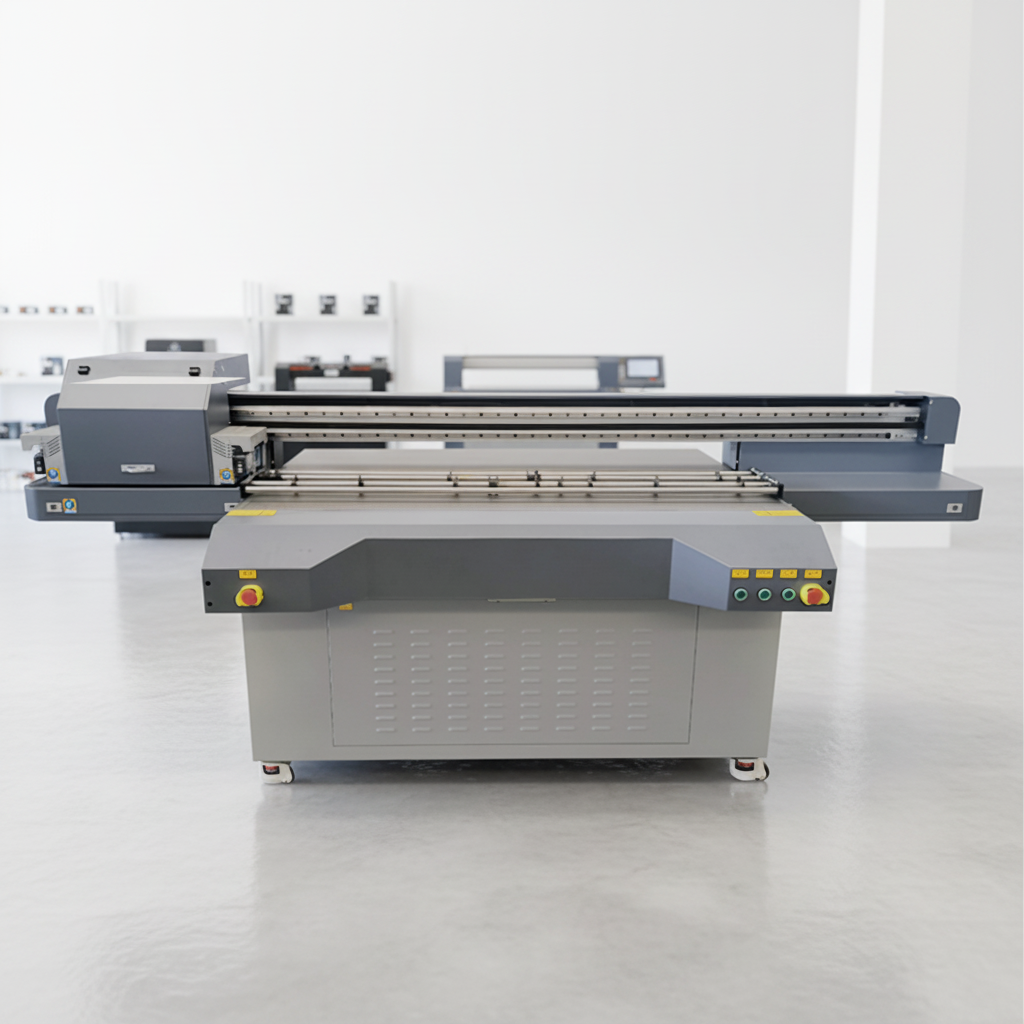

Standard series of small-format flatbed UV printer. The main advantage is the relationship between economy and quality. It is a multi-functional, multi-industry, multi-field service equipment with stable performance, good accuracy, fast speed and long life. This machine suitable for advertising processing, handicraft industry, Decorative painting industry, mobile phone case color printing and other industries. It can completely replace screen printing, pad printing, transfer printing, water transfer printing, offset printing and other traditional craftsmanship, and give full play to its advantages to reduce enterprise costs.
Usually T/T payment, 30% advance payment, 70% paid before shipment. It is also possible to negotiate.
| Product Model | YC1610H | ||
| Printhead Type | RICOH GH2220/TOSHIBA CE4/RICOH GEN5 Optional | ||
| Printhead Number | 2-8 heads | ||
| Ink Characteristics | UV Curing Ink (VOA Free) | ||
| Ink reservoirs | Refillable on the fly while printing/1000ml per color | ||
| LED UV Lamp | more than 30000-hours life | ||
| Printhead arrangement | CMYKW V Optional | ||
| Printhead Cleaning System | Automatic Cleaning System | ||
| Guide Rail | Taiwan HIWIN | ||
| Working Table | Vacuum Sucking | ||
| Printing Size | 1600*1000mm | ||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | ||
| Media Thickness | 0-100mm | ||
| Print Resolution & Speed | 720X600dpi | 4PASS | 4-16sqm/h |
| 720X900dpi | 6PASS | 3-11sqm/h | |
| 720X1200dpi | 8PASS | 2-8sqm/h | |
| Life of printed image | 3 years(outdoor), 10years(indoor) | ||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | ||
| RIP Software | Photoprint / RIP PRINT Optional | ||
| Power Supply | 220V 50/60Hz(10%) | ||
| Power | 3100W | ||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | ||
| Warranty | 12 months exclude the consumables | ||
Equiped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high- precision printing.
Adopting HIWIN mute double linear guide rail which is high resolution, low noise and durable, to ensure the carriage moving smoothly, inks eject more stably.
Utilize high mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Sectional vacuum suction platform, easily choose the vacuuming sections, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
Equipped with self-researched cold drawn and high-strength aluminum beam, applied ultra strength aerial aluminum material, it ensures printing precision and stability, guarantee the perfect output.
15 sqm/h
11 sqm/h
8 sqm/h
3d wallpaper
The customer satisfaction is our primary target. We uphold a consistent level of professionalism, quality, credibility and service for Low price for 6090 A1 Pen Bottle Stone Glass Metal PVC Wood Acrylic Cup Crystal Label Printing Machine Inkjet Flatbed UV Digital Canvas Cellphone Printer with Rotary, With a wide range, good quality, fair rates and great services, we are going to be your ideal small business partner. We welcome new and outdated prospects from all walks of lifestyle to get in touch with us for future company associations and achieving mutual accomplishment!
Low price for China Printing Machine and Cell Phone Printer, With its rich manufacturing experience, high-quality products and solutions, and perfect after-sale service, the company has gained good reputation and has become one of the famous enterprise specialized in manufacturing series. We sincerely hope to establish business relation with you and pursue mutual benefit.
