We have a qualified, efficient group to offer excellent support for our clients. We consistently follow the tenet of customer-oriented, details-focused service to deliver the best value on our Dual Heads 9600dpi CMYK+W Large Format UV 3D Wall Printer. Premium quality and competitive pricing have earned our products an outstanding track record worldwide.
Our dedicated team provides top-tier support for all customer needs regarding Wall Printing Machines and Automatic Wall Painting Machines. Our items have achieved an excellent reputation across diverse global markets. Driven by technological innovation and state-of-the-art modern management methods, we continuously attract top industry talent, regarding product quality as our utmost priority.
Printing table size
1600mm × 1000mm
Max material weight
50kg
Maximum material height
100mm

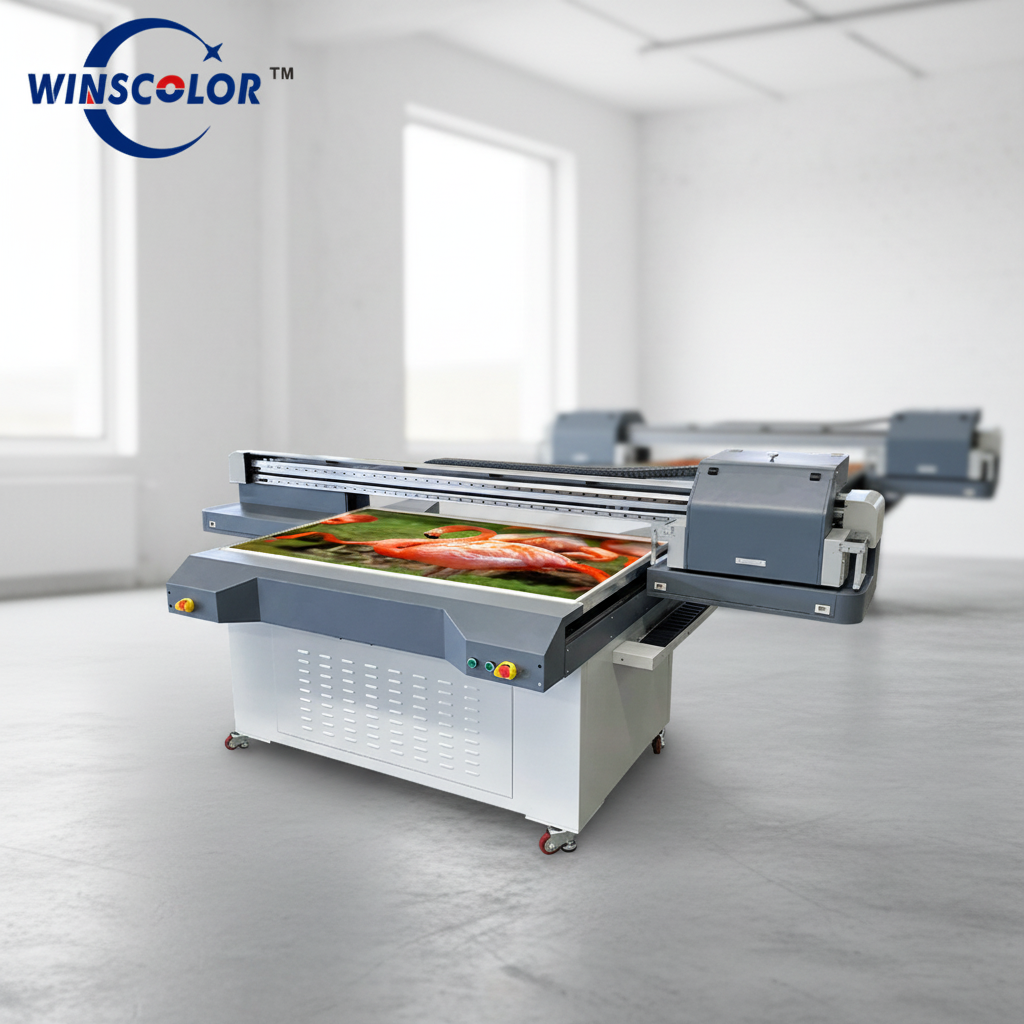

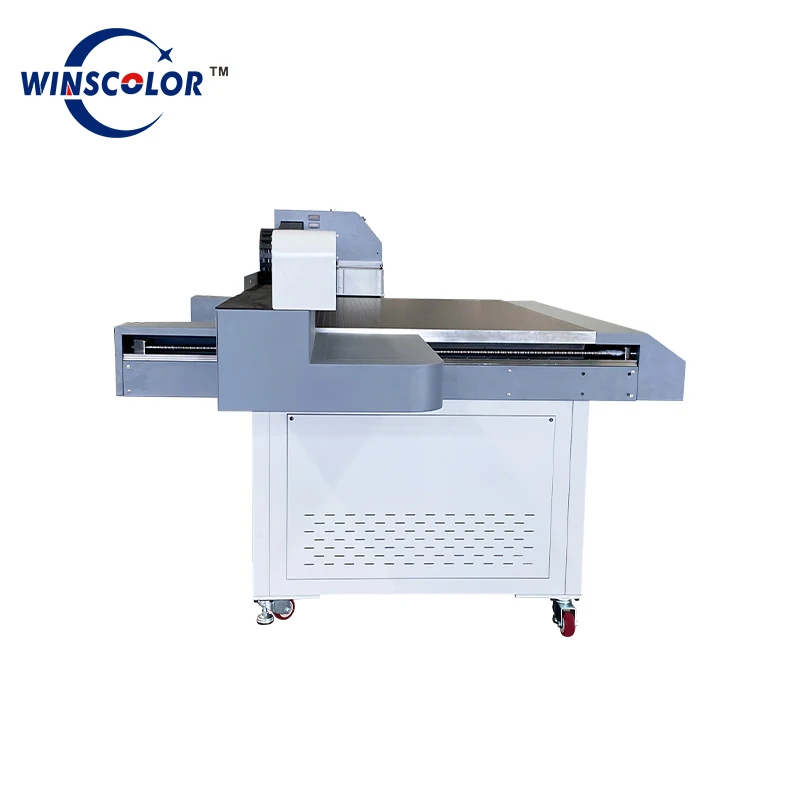

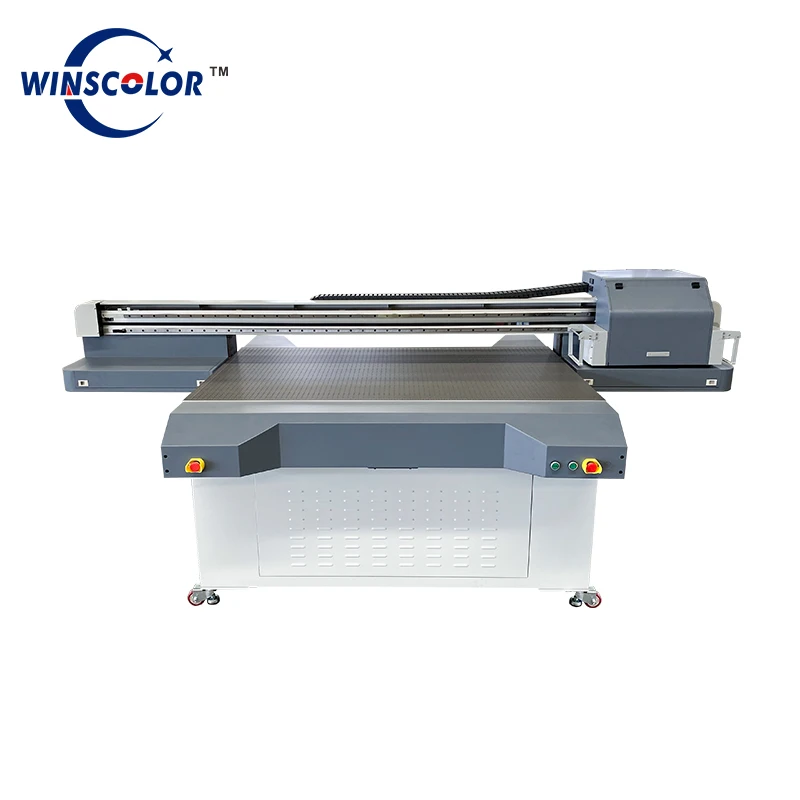

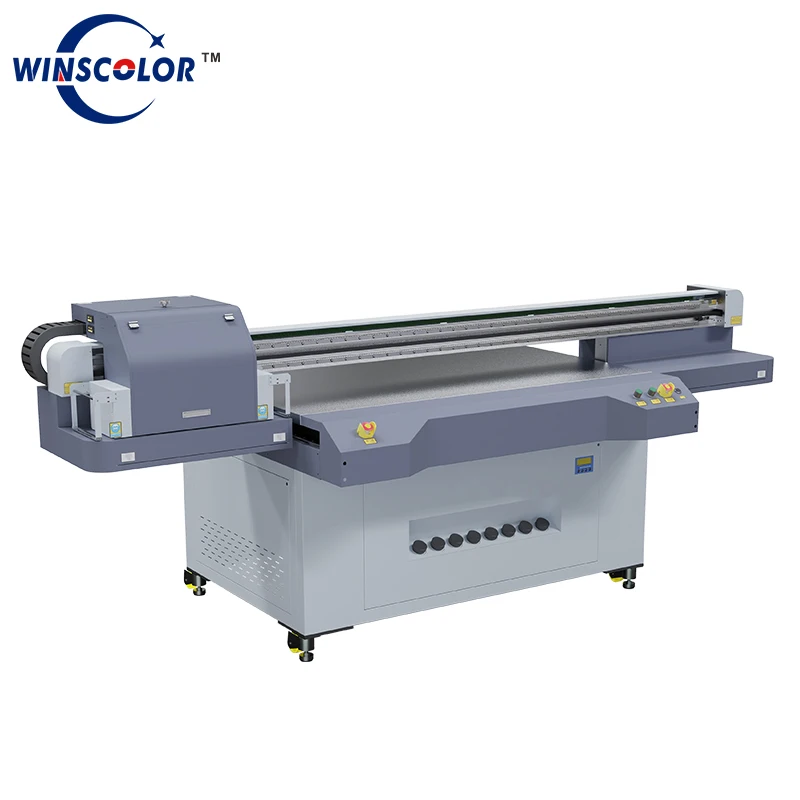

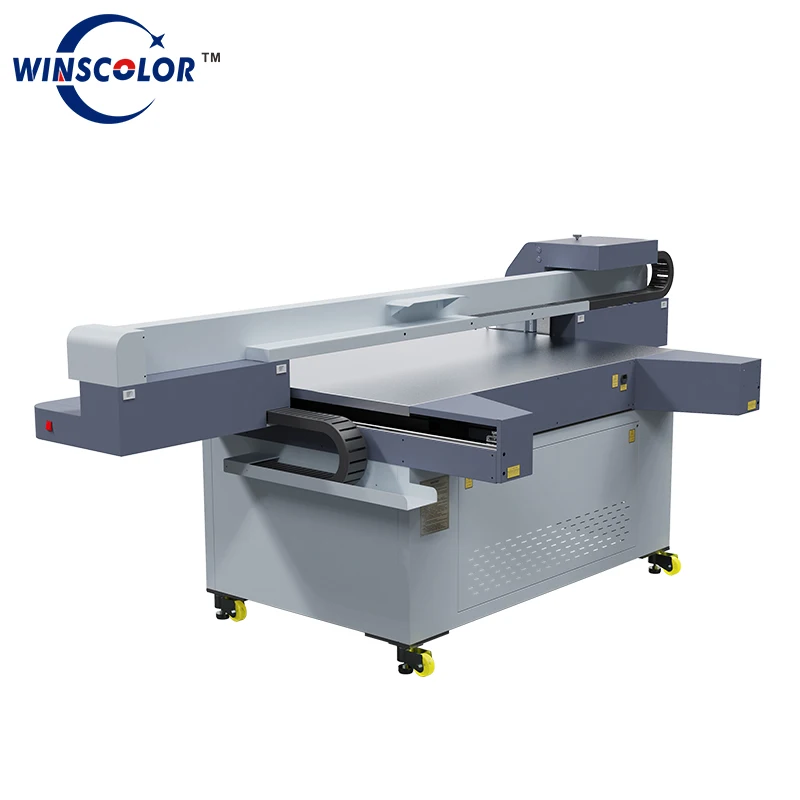

The standard series small-format flatbed UV printer balances outstanding economy with industrial-grade quality. It is a multi-functional machine engineered for multiple fields and industries, boasting stable performance, high accuracy, rapid operation, and an extended lifespan.
Ideal for advertising processing, handicrafts, decorative painting, and mobile phone case customization, this equipment serves as a direct, efficient alternative to traditional methods such as screen printing, pad printing, transfer printing, water transfer printing, and offset printing, helping enterprises significantly reduce overhead costs.
Standard terms are T/T: 30% advance deposit upon order confirmation, with the remaining 70% balance settled prior to dispatch. Alternative payment terms may be negotiated upon request.
Compatible with an expansive selection of rigid and flexible media, including mugs, bottles, balls, phone cases, pens, banners, PVC boards, ceramic tiles, glass, plastics, leather, rubber, candles, metals, wood, porcelain, ABS, acrylic, aluminum, marble, granite, and paperboard.
| Product Model | YC1610H | ||
| Printhead Type | RICOH GH2220 / TOSHIBA CE4 / RICOH GEN5 (Optional) | ||
| Printhead Number | 2 - 8 heads | ||
| Ink Characteristics | UV Curing Ink (VOC Free) | ||
| Ink Reservoirs | Refillable during operation / 1000ml capacity per color channel | ||
| LED UV Lamp | Extended service life exceeding 30,000 hours | ||
| Printhead Arrangement | CMYK + W + V (Configurable) | ||
| Cleaning System | Automated Positive Pressure Cleaning System | ||

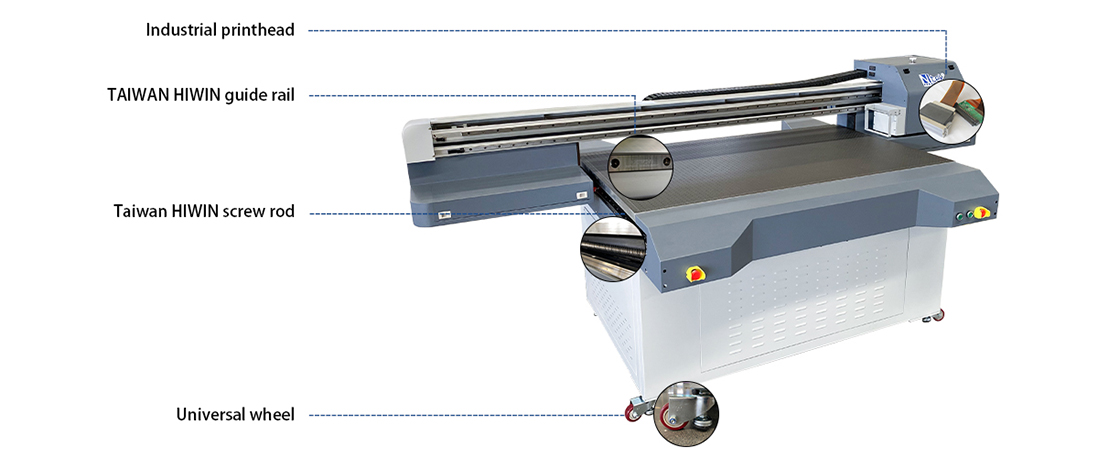

| Guide Rail | Precision Taiwan HIWIN Linear Rails | ||
| Working Table | Sectional Vacuum Suction Bed | ||
| Printing Size | 1600 × 1000 mm | ||
| Print Interface | High-speed USB 2.0 / USB 3.0 / Ethernet | ||
| Media Thickness | 0 - 100 mm | ||
| Print Resolution & Speed | 720 × 600 dpi (4 PASS) | 4 - 16 sqm/h | |
| 720 × 900 dpi (6 PASS) | 3 - 11 sqm/h | ||
| 720 × 1200 dpi (8 PASS) | 2 - 8 sqm/h | ||
| Image Durability | Up to 3 years outdoor exposure; up to 10 years indoor | ||
| File Compatibility | TIFF, JPEG, PostScript, EPS, PDF, and more | ||
| RIP Software | Photoprint / RIP PRINT (Optional) | ||
| Power Supply | 220V 50/60Hz (±10%) | ||
| Power Consumption | 3100W | ||
| Operating Environment | Temperature: 20°C - 30°C; Humidity: 40% - 60% | ||
| Warranty | 12 months (excluding wear components and consumables) | ||

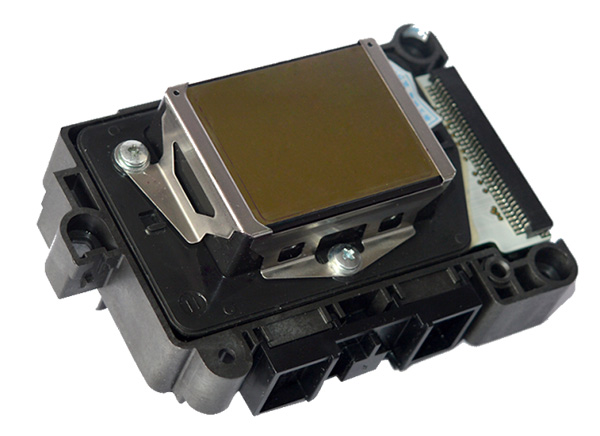

Epson Print Head Compatible with precision Japanese Epson DX5/DX7/XP600/TX800/I3200 print heads with 180 nozzles across 6-8 channels for high-definition reproduction.

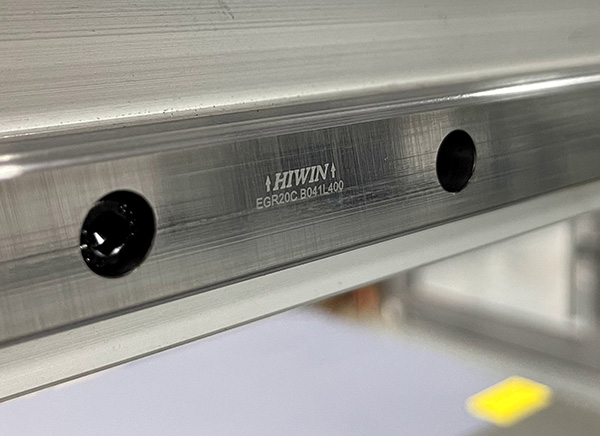

HIWIN Mute Linear Guide Rail Heavy-duty HIWIN silent guide rails deliver stable carriage transit, ultra-low operating noise, and steady drop placement accuracy.

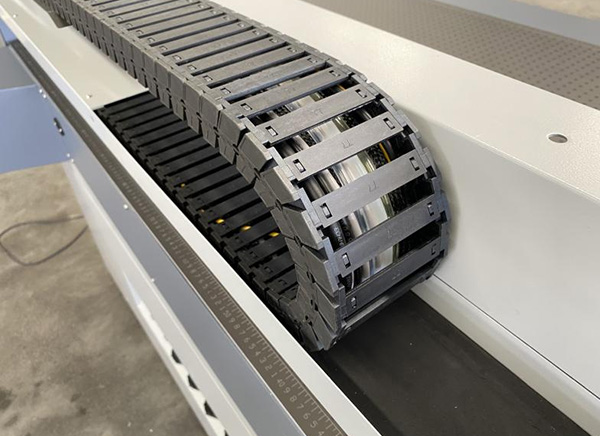

High-Performance Drag Chain Ultra-quiet drag chains protect internal tubing and electronic cabling throughout high-speed movements, fostering a smooth workshop environment.

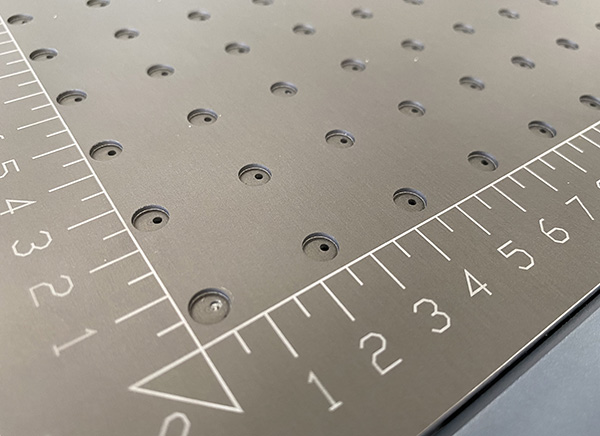

Sectional Vacuum Platform Indivudally selectable vacuum sections provide firm hold-down for materials of diverse dimensions, preventing warping during production.

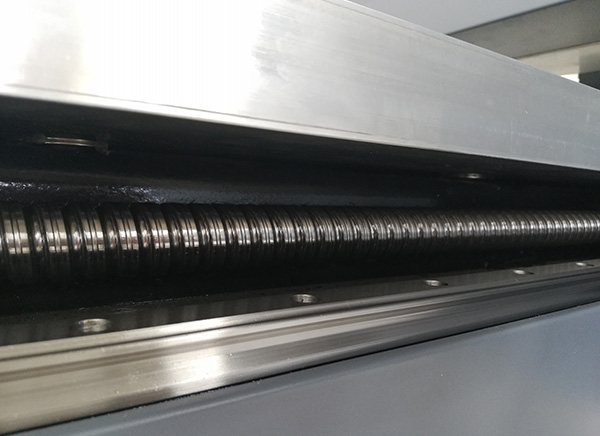

HIWIN Dual Lead Screws Dual-axis drive mechanics backed by high-precision Panasonic servo systems keep synchronous movement aligned across the Y axis.

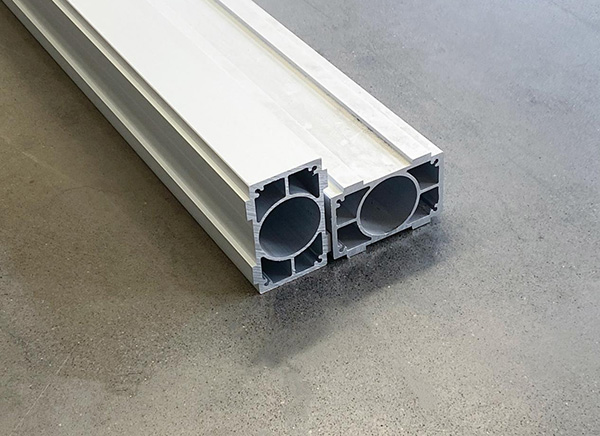

High-Strength Aluminum Beam Built with cold-drawn aerospace-grade aluminum to ensure uncompromised structural rigidity, reliable stability, and clean output.
Production Quality: 15 sqm/h
High Quality: 11 sqm/h
Super High-Quality: 8 sqm/h
