| Product Model | YC1610H | |||
| Printhead Type | RICOH GH2220 / TOSHIBA CE4 / RICOH GEN5 Optional | |||
| Printhead Number | 2-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOA Free) | |||
| Ink Reservoirs | Refillable on the fly while printing / 1000ml per color | |||
| LED UV Lamp | More than 30000-hours life | |||
| Printhead Arrangement | CMYKW V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide Rail | Taiwan HIWIN | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 1600*1000mm | |||
| Print Interface | USB2.0 / USB3.0 / Ethernet Interface | |||
| Media Thickness | 0-100mm | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 4-16sqm/h | |
| 720X900dpi | 6PASS | 3-11sqm/h | ||
| 720X1200dpi | 8PASS | 2-8sqm/h | ||
| Life of Printed Image | 3 years (outdoor), 10 years (indoor) | |||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz (10%) | |||
| Power | 3100W | |||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | |||
| Warranty | 12 months exclude the consumables | |||
Equipped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high-precision printing.
Sectional vacuum suction platform, easily choose the vacuuming sections, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.
Adopting HIWIN mute double linear guide rail which is high resolution, low noise and durable, to ensure the carriage moving smoothly, inks eject more stably.
Utilize high mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
Equipped with self-researched cold drawn and high-strength aluminum beam, applied ultra strength aerial aluminum material, it ensures printing precision and stability, guarantee the perfect output.

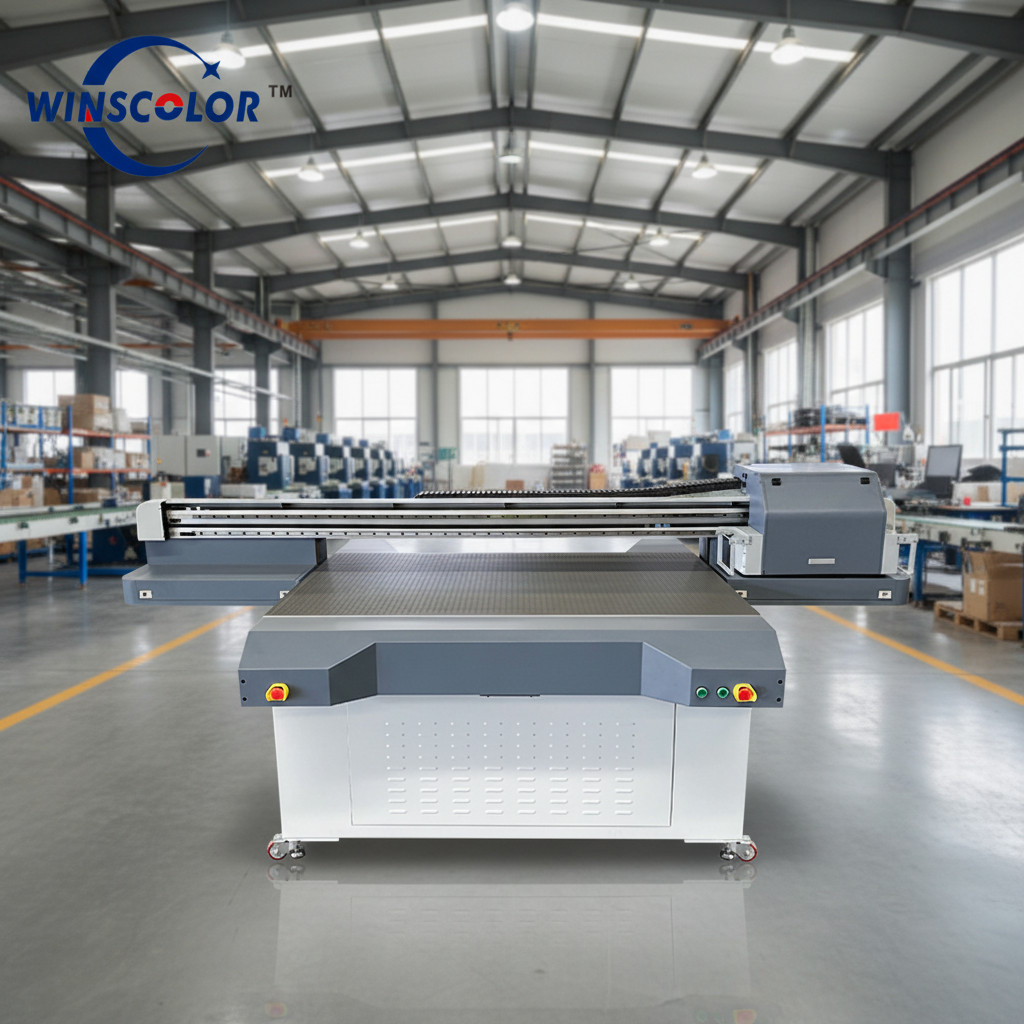

Standard series of small-format flatbed UV printer. The main advantage is the relationship between economy and quality. It is a multi-functional, multi-industry, multi-field service equipment with stable performance, good accuracy, fast speed and long life. This machine suitable for advertising processing, handicraft industry, Decorative painting industry, mobile phone case color printing and other industries. It can completely replace screen printing, pad printing, transfer printing, water transfer printing, offset printing and other traditional craftsmanship, and give full play to its advantages to reduce enterprise costs.
Usually T/T payment, 30% advance payment, 70% paid before shipment. It is also possible to negotiate.
The machine offers versatile print head configurations, supporting RICOH GH2220, TOSHIBA CE4, and RICOH GEN5 options, as well as Japanese Epson DX5, DX7, XP600, TX800, and I3200 heads ranging from 2 to 8 units depending on your production requirements.
It accommodates an extensive range of substrates, including acrylic, glass, ceramic tile, metal, wood, PVC boards, leather, plastic, phone cases, mugs, bottles, balls, marble, granite, and paperboard up to 100mm standard height (customizable up to 40cm).
Yes, the printer fully supports 3D embossed effect printing along with varnish glossy effect printing, utilizing white circulation and clear varnish ink options to deliver tactile, multi-layered textures.
Printed outputs achieve high durability with a lifespan of approximately 3 years for outdoor applications and up to 10 years in indoor environments, cured instantly by high-durability LED UV lamps.
We offer a 12-month standard warranty (excluding consumable ink system parts), 24-hour dedicated technical support, free comprehensive online training, operational videos, manuals, remote system troubleshooting, and regular customer follow-up services.
