We keep on with the basic principle of "quality to start with, support very first, continuous improvement and innovation to meet the customers" for your management and "zero defect, zero complaints" as the quality objective. To great our service, we offer the items with all the superior top quality at the reasonable selling price for China UV Printer and Small UV Printer, So far our products have been exported to east Europe, the Middle East, Southeast, Africa and South America etc. We have 13years professional sales and purchase in Isuzu parts at home and abroad and the ownership of the modernized electronic Isuzu parts checking systems. We honor our core principal of Honesty in business, priority in service and will do our best to offer our customers with high quality products and excellent service.
Printing table size
1600mm×1000mm
Max material weight
50kg
Maximum material height
100mm

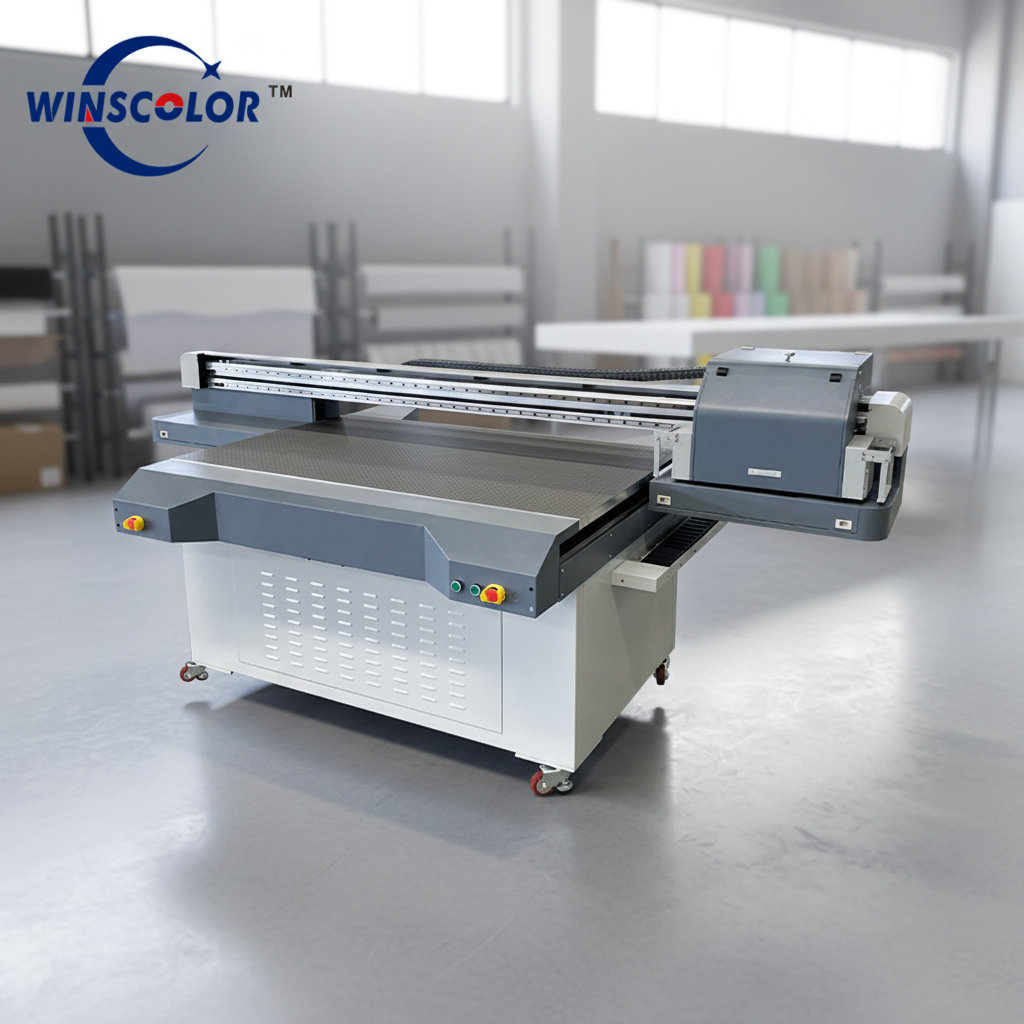

Standard series of small-format flatbed UV printer. The main advantage is the relationship between economy and quality. It is a multi-functional, multi-industry, multi-field service equipment with stable performance, good accuracy, fast speed and long life. This machine suitable for advertising processing, handicraft industry, Decorative painting industry, mobile phone case color printing and other industries. It can completely replace screen printing, pad printing, transfer printing, water transfer printing, offset printing and other traditional craftsmanship, and give full play to its advantages to reduce enterprise costs.
Usually T/T payment, 30% advance payment, 70% paid before shipment. It is also possible to negotiate.
Wide range of printing materials, such as: mugs, bottles. balls, Phone case, pen, banner, PVC board, ceramic tile, glass, plastic, leather, rubber, candles, metal, wood, porcelain, ABS, acrylic, aluminum, marble, granite, paperboard.
| Product Model | YC1610H | |||
| Printhead Type | RICOH GH2220/TOSHIBA CE4/RICOH GEN5 Optional | |||
| Printhead Number | 2-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOA Free) | |||
| Ink reservoirs | Refillable on the fly while printing/1000ml per color | |||
| LED UV Lamp | more than 30000-hours life | |||
| Printhead arrangement | CMYKW V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide Rail | Taiwan HIWIN | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 1600*1000mm | |||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | |||
| Media Thickness | 0-100mm | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 4-16sqm/h | |
| 720X900dpi | 6PASS | 3-11sqm/h | ||
| 720X1200dpi | 8PASS | 2-8sqm/h | ||
| Life of printed image | 3 years(outdoor),10years(indoor) | |||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz(10%) | |||
| Power | 3100W | |||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | |||
| Warranty | 12 months exclude the consumables | |||
Equiped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high- precision printing.
Adopting HIWIN mute double linear guide rail which is high resolution, low noise and durable, to ensure the carriage moving smoothly, inks eject more stably.
Utilize high mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Sectional vacuum suction platform, easily choose the vacuuming sections, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
Equipped with self-researched cold drawn and high-strength aluminum beam, applied ultra strength aerial aluminum material, it ensures printing precision and stability, guarantee the perfect output.
We keep on with the basic principle of "quality to start with, support very first, continuous improvement and innovation to meet the customers" for your management and "zero defect, zero complaints" as the quality objective. To great our service, we offer the items with all the superior top quality at the reasonable selling price for Ordinary Discount Card UV Flatbed MT 6090 Cup golf ball printer MT-UV6090Pro, We welcome new and old shoppers from all walks of lifetime to call us for future organization relationships and mutual achievements!
Ordinary Discount China UV Printer and Small UV Printer, So far our products have been exported to east Europe, the Middle East, Southeast, Africa and South America etc. We have 13years professional sales and purchase in Isuzu parts at home and abroad and the ownership of the modernized electronic Isuzu parts checking systems. We honor our core principal of Honesty in business, priority in service and will do our best to offer our customers with high quality products and excellent service.
This printer supports an extensive range of substrates including mugs, bottles, balls, phone cases, pens, banners, PVC board, ceramic tile, glass, plastic, leather, rubber, candles, metal, wood, porcelain, ABS, acrylic, aluminum, marble, granite, and paperboard.
The standard printing table size is 1600mm x 1000mm (5.25 x 3.28 ft). The standard media thickness accommodates materials from 0 to 100mm, with customizable height options capable of reaching up to 40cm.
The printer supports 2 to 8 print heads, compatible with RICOH GH2220, TOSHIBA CE4, RICOH GEN5, and Epson DX5/DX7/XP600/TX800/I3200 heads. Supported ink configurations include CMYK, Light Cyan, Light Magenta, White, and Varnish.
Print speeds reach 15 sqm/h for production mode (4PASS, 720x600dpi), 11 sqm/h for high quality (6PASS, 720x900dpi), and 8 sqm/h for super high quality (8PASS, 720x1200dpi). Printed graphics endure up to 3 years outdoors and up to 10 years indoors.
A 12-month warranty is included (excluding consumables and the ink delivery system). We provide 24-hour customer support, comprehensive online training, operation manuals, video instructions, remote support, and quarterly check-ins for active equipment.
Payment is normally conducted via T/T wire transfer with a 30% advance deposit and the remaining 70% completed prior to shipping. Terms can also be negotiated depending on order requirements.
