Sticking towards the theory of "Super Good quality, Satisfactory service", We are striving to become a superb business enterprise partner of you for Good quality Digital Large Format Aluminum Wood Glass UV Flatbed Printer Also for Cylinder Items, We are anticipating to cooperate with you around the basis of mutual added benefits and common development. We are going to never disappoint you.
Sticking towards the theory of "Super Good quality, Satisfactory service", We are striving to become a superb business enterprise partner of you for China Large Format Printer and UV Flatbed Printer, During in 11 years, We have participated in more than 20 exhibitions, obtains the highest praise from each customer. Our company always aim to provide the customer best products with lowest price. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us. Join us, show your beauty. We will always be your first choice. Trust us, you will never lose heart.
Printing table size
3200mm
Max material weight
50kg
Maximum material height
100mm
This printer has the function of flatbed printing and roll-to-roll printing, which is the biggest feature of hybrid printers. As a one-stop printing solution for flatbed and roll-to-roll printing, our digital UV hybrid printers have an extremely wide range of applications. Not only can they print on flexible materials like canvas, vinyl stickers/banners, but they are also perfect for rigid materials like glass, wood, acrylic, etc.
| Product Model | YC3321R | |||
| Printhead Type | RICOH GEN5/GEN6/KM1024I/SPT1024GS | |||
| Printhead Number | 2-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOC Free) | |||
| Ink reservoirs | Refillable on the fly while printing 2500ml per color | |||
| LED UV Lamp | more than 30000-hours life made in Korea | |||
| Printhead arrangement | CMYK LC LM W V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide rail | TAIWAN HIWIN/THK Optional | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 3300*2100mm | |||
| Roller Material Width | 3300mm | |||
| Roller Material Diameter | 200mm | |||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | |||
| Media Thickness | 0-100mm | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 15-33sqm/h | (GEN6 40% faster than this speed) |
| 720X900dpi | 6PASS | 10-22sqm/h | ||
| 720X1200dpi | 8PASS | 8-18sqm/h | ||
| Life of printed image | 3 years(outdoor),10years(indoor) | |||
| File Format | TIFF,JPEG,Postscript,EPS,PDF etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz(10%) | |||
| Power | 8500W | |||
| Operation Environment | Temperature 20 to 30 ℃,Humidity 40% to 60% | |||

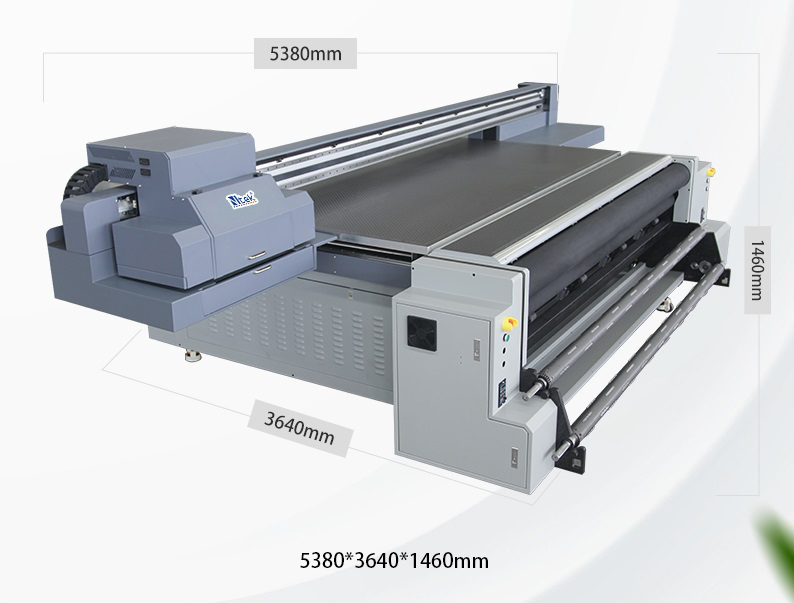

| Machine Dimension | 5.37*3.78*1.46m | |||
| Packing Dimension | 5.55*2.25*1.67m 4.3*0.85*1.22m | |||
| Weight | 3000kg | |||
| Warranty | 12 months exclude the consumables related to ink, such as ink filter, damper etc | |||

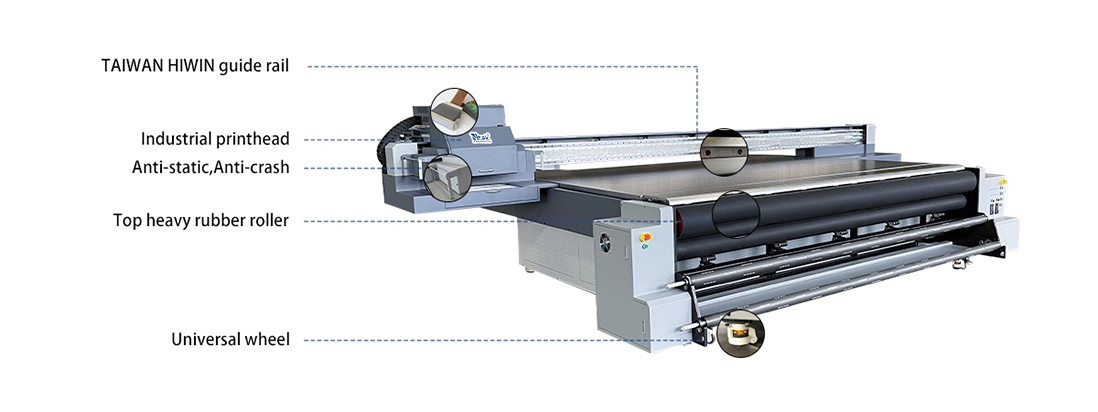

Our YC3321R printer has the following advantages:
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
I hope we have the opportunity to cooperate,Thank you for choosing the supplier Ntek.Sticking towards the theory of "Super Good quality, Satisfactory service" ,We are striving to become a superb business enterprise partner of you for Good quality Digital Large Format Aluminum Wood Glass UV Flatbed Printer Also for Cylinder Items, We are anticipating to cooperate with you around the basis of mutual added benefits and common development. We are going to never disappoint you.
Good quality China Large Format Printer and UV Flatbed Printer, During in 11 years,We have participated in more than 20 exhibitions,obtains the highest praise from each customer. Our company always aim to provide the customer best products with lowest price. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us. Join us, show your beauty. We will always be your first choice. Trust us, you will never lose heart.
The YC3321R supports both flatbed and roll-to-roll printing. It handles rigid substrates like glass, acrylic, wood, PVC sheets, and metal plates, as well as flexible media such as wallpaper, canvas, and vinyl banners.
Printed outputs feature outstanding durability with up to 3 years of resistance under outdoor conditions and up to 10 years for indoor applications.
General delivery takes about 20 working days. Because a full inventory of parts is kept in stock, assembly is efficient, followed by a mandatory secondary quality inspection prior to shipment.
Yes, a free sample printing service (up to 20x30cm) is available. You can send your preferred media and only cover the express shipping costs to check the output quality.
The machine comes with a 12-month standard warranty, which excludes ink-related consumable parts such as ink filters and dampers.
