| Product Model | YC3321R | |||
| Printhead Type | RICOH GEN5/GEN6/KM1024I/SPT1024GS | |||
| Printhead Number | 2-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOC Free) | |||
| Ink Reservoirs | Refillable on the fly while printing 2500ml per color | |||
| LED UV Lamp | More than 30000-hours life, made in Korea | |||
| Printhead Arrangement | CMYK LC LM W V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide Rail | TAIWAN HIWIN/THK Optional | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 3300*2100mm | |||
| Roller Material Width | 3300mm | |||
| Roller Material Diameter | 200mm | |||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | |||
| Media Thickness | 0-100mm | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 15-33sqm/h | (GEN6 40% faster than this speed) |
| 720X900dpi | 6PASS | 10-22sqm/h | ||
| 720X1200dpi | 8PASS | 8-18sqm/h | ||
| Life of Printed Image | 3 years(outdoor), 10 years(indoor) | |||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz(10%) | |||
| Power | 8500W | |||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | |||
| Machine Dimension | 5.37*3.78*1.46m | |||
| Packing Dimension | 5.55*2.25*1.67m / 4.3*0.85*1.22m | |||
| Weight | 3000kg | |||
| Warranty | 12 months exclude the consumables related to ink, such as ink filter, damper etc. | |||
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.

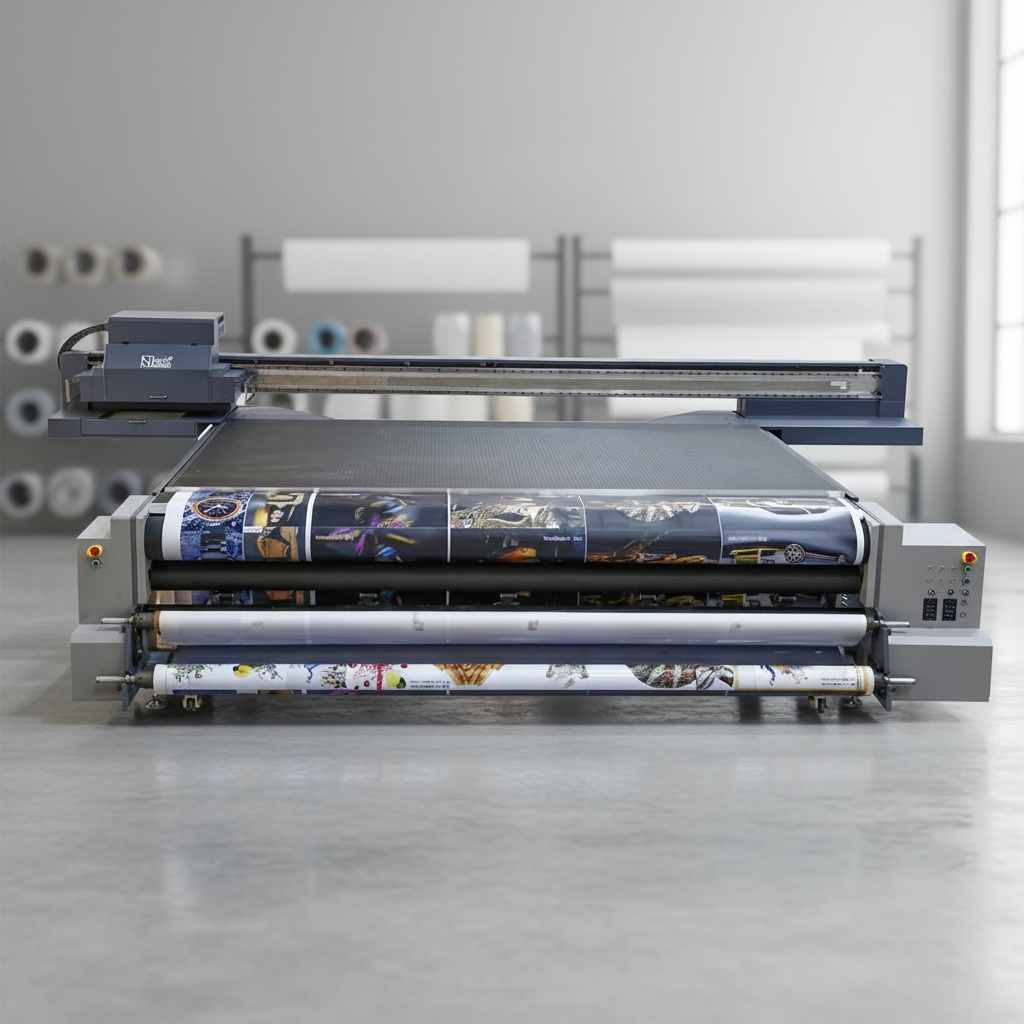

This printer has the function of flatbed printing and roll-to-roll printing, which is the biggest feature of hybrid printers. As a one-stop printing solution for flatbed and roll-to-roll printing, our digital UV hybrid printers have an extremely wide range of applications. Not only can they print on flexible materials like canvas, vinyl stickers/banners, but they are also perfect for rigid materials like glass, wood, acrylic, etc.
We are a professional manufacturer of UV printers for 13 years, with CE certificate and ISO9001 certification.
If interested in our products, but worry about the quality. You can send your sample, we will print it for you for free, you only need to pay the express fee. The print size is 20*30cm.
I hope we have the opportunity to cooperate,Thank you for choosing the supplier Ntek.
The printer supports both flatbed and roll-to-roll operations. It prints on rigid substrates such as glass, acrylic, wood, PVC sheet, metal plate, reflective film, and corrugated board, as well as flexible materials including wall paper, advertising cloth, canvas, and car stickers up to 100mm in thickness.
The printer supports 2 to 8 industrial printheads including RICOH GEN5, GEN6, KM1024I, and SPT1024GS. Production speeds range up to 50sqm/h, with GEN6 heads delivering approximately 40% faster performance.
The machine includes a 12-month standard warranty. Consumable parts associated with ink contact, such as ink filters and dampers, are excluded from the standard coverage.
Shipments are secured using international standard fumigation-free wooden packaging suitable for loading and unloading. Complete logistics management including shipping and customs clearance assistance is available.
Yes, customers may supply their own media for a complimentary sample print up to 20*30cm in size. The customer is solely responsible for covering express courier freight costs.
It operates with VOC-free UV curing inks via refillable 2500ml-per-color continuous supply reservoirs, cured using long-life Korean LED UV lamps rated for over 30,000 operational hours.
