Fast and great quotations, informed advisers to help you choose the correct product that suits all your preferences, a short creation time, responsible top quality control and different services for paying and shipping affairs for Factory For High Quality Fast Drying Flat UV LED Digital Printing Machine, Our tenet is evident all of the time: to deliver high quality solution at competitive price tag to clients throughout the planet. We welcome potential customers to get in touch with us for OEM and ODM orders.
Fast and great quotations, informed advisers to help you choose the correct product that suits all your preferences, a short creation time, responsible top quality control and different services for paying and shipping affairs for China UV Tablet Printe and Metal Printer, We take measure at any price to attain essentially the most up-to-date gear and procedures. The packing of nominated brand is our a further distinguishing feature. The solutions to assure years of trouble-free service has attracted a great deal customers. The items are obtainable in improved designs and richer variety, they're produced scientifically of purely raw supplies. It accessible in a variety of designs and specs for the selection. The newest forms are much far better than the previous one and they're extremely popular with several clients.
Printing table size
2500mm×1300mm
Max material weight
50kg
Maximum material height
100mm
YC2513H is a economic entry-level UV flatbed printer. It can print on all kinds of material with flat substrate. It is a very good choice for start of a new printing business.
YC2513H with a large format printing size 2.5mX1.3m, allow large quantity production. It is automatic so that easy to learn and operate. Print head base board is OEM by professional factory, high-precision process and high efficient to meet the needs of production capacity.
| Product Model | YC2513H | ||
| Printhead Type | EPSON | ||
| Printhead Number | 2-4 heads | ||
| Ink Characteristics | UV Curing Ink (VOA Free) | ||
| Ink reservoirs | Refillable on the fly while printing 1000ml per color | ||
| LED UV Lamp | more than 30000-hours life | ||
| Printhead arrangement | CMYKW V optional | ||
| Printhead Cleaning System | Automatic Cleaning System | ||
| Guide Rail | Taiwan HIWIN | ||
| Working Table | Vacuum Sucking | ||
| Printing Size | 2500*1300mm | ||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | ||
| Media Thickness | 0-100mm | ||
| Life of printed image | 3 years(outdoor), 10years(indoor) | ||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | ||
| Print Resolution & Speed | 720X600dpi | 4PASS | 4-16sqm/h |
| 720X900dpi | 6PASS | 3-11sqm/h | |
| 720X1200dpi | 8PASS | 2-8sqm/h | |
| RIP Software | Photoprint / RIP PRINT Optional | ||
| Power Supply | 220V 50/60Hz(10%) | ||
| Power | 3100W | ||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | ||
| Machine Dimension | 3.7*2.08*1.26m | ||
| Packing Dimension | 3.9*1.85*1.43m | ||
| Weight | 800kg | ||
| Warranty | 12 months exclude the consumables | ||

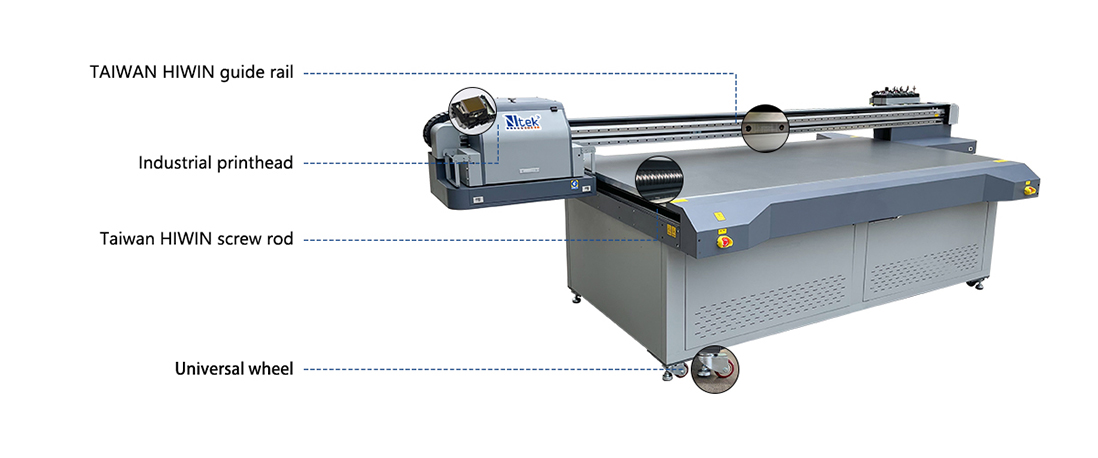

Equipped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high-precision printing.
Use high precision mute liner guide rail, long service life, high stability, immensely decrease noise while printer is printing, within 40DB while printing.
Germany IGUS Mute Drag Chain Utilize on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
The vaccum suction platform is easy to operate and save energy, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.
High quality Automatic ink absorption cleaning control unit, which could greatly extend print head life span.
Use non-VOC environmental UV curing ink, clear and perfect printing quality, no bias color, no mixing color, waterproof, wear-resistant. Color with CMYK white and varnish optional for glossy surface printing.
YC2513H UV flatbed printer is to replace the traditional printing machines, realized one-time printing work instead of whole traditional complicated process.
YC2513H UV flatbed printer has been widely used in different industries including advertisement and signs, furniture, house decoration, arts and painting, package and label, vision designs,etc. Its outstanding advantage is that, it could print on limitless materials like acrylic, glass, ceramic tile, woods, MDF, steel, foam boards, paper, PVC, corrugated cardboard, banner flex, canvas, mesh paper, sticker and all kinds of flat materials.
YC2513H UV flatbed printer printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs. All of print work can be finished one time with simple operation and high profits, which will be a big fortune for your business.
Fast and great quotations, informed advisers to help you choose the correct product that suits all your preferences, a short creation time, responsible top quality control and different services for paying and shipping affairs for Factory For High Quality Fast Drying Flat UV LED Digital Printing Machine, Our tenet is evident all of the time: to deliver high quality solution at competitive price tag to clients throughout the planet. We welcome potential customers to get in touch with us for OEM and ODM orders.
Factory For China UV Tablet Printe and Metal Printer, We take measure at any price to attain essentially the most up-to-date gear and procedures. The packing of nominated brand is our a further distinguishing feature. The solutions to assure years of trouble-free service has attracted a great deal customers. The items are obtainable in improved designs and richer variety, they're produced scientifically of purely raw supplies. It accessible in a variety of designs and specs for the selection. The newest forms are much far better than the previous one and they're extremely popular with several clients.
The YC2513H can print on almost all flat substrate materials, including acrylic, glass, ceramic tile, wood, MDF, steel, foam boards, paper, PVC, corrugated cardboard, banner flex, canvas, mesh paper, and various types of stickers.
The maximum printable area is 2500mm x 1300mm (2.5m x 1.3m), accommodating materials up to 100mm in thickness and supporting a maximum media weight of 50kg.
Yes, the machine supports multiple white printing modes and is fully capable of printing CMYK colors, white ink, and varnish at the same time for distinct visual layers and glossy surface finishes.
With high-grade, non-VOC UV curing ink, the printed output offers excellent durability, lasting up to 3 years in outdoor environments and up to 10 years indoors without fading.
The YC2513H comes with a standard 12-month warranty covering major machine components (excluding regular consumables and printheads).
No, the digital UV flatbed process operates digitally without plate-making requirements, enabling easy, highly profitable one-off sample prints or small orders without MOQ.
