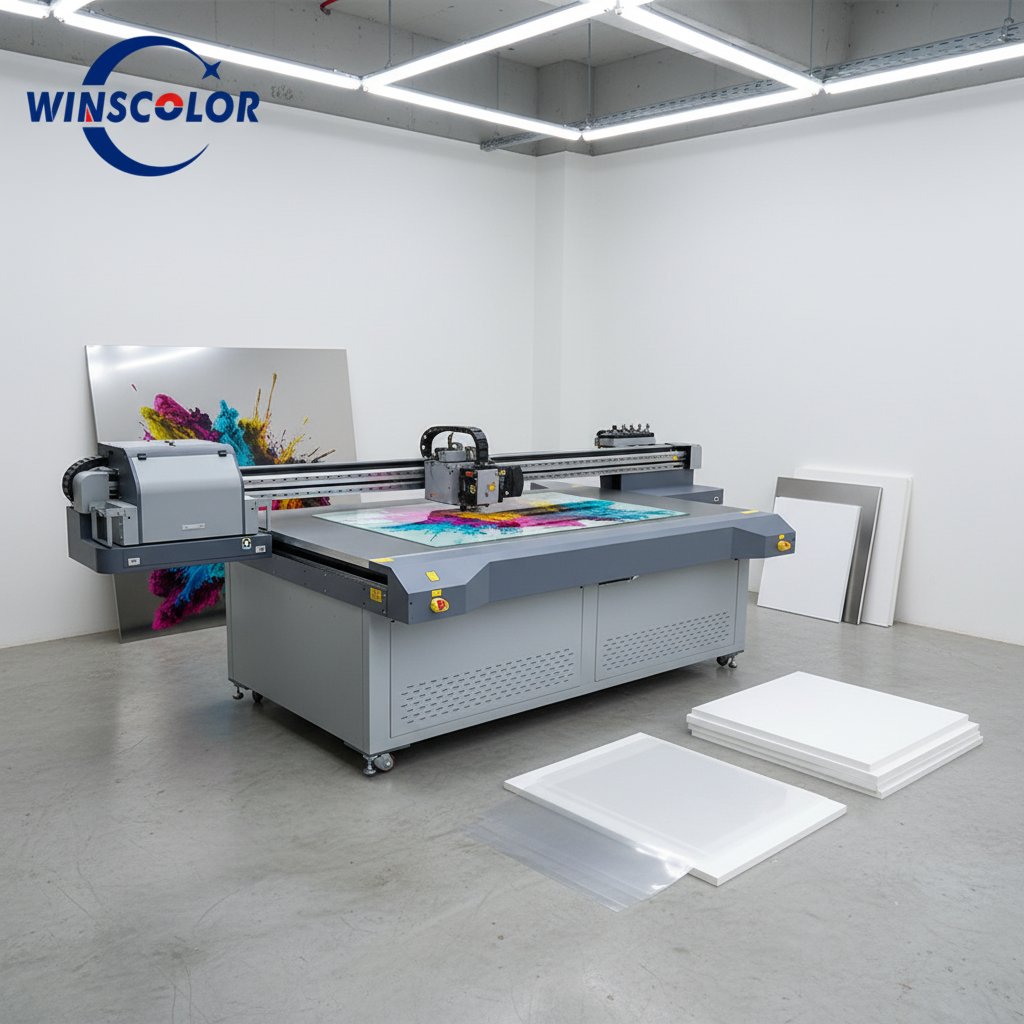

YC2513H is an economic entry-level UV flatbed printer. It can print on all kinds of material with flat substrate. It is a very good choice for start of a new printing business.
YC2513H with a large format printing size 2.5mX1.3m, allow large quantity production. It is automatic so that easy to learn and operate. Print head base board is OEM by professional factory, high-precision process and high efficient to meet the needs of production capacity.
Equipped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high-precision printing.
The vacuum suction platform is easy to operate and save energy, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.
Use high precision mute liner guide rail, long service life, high stability, immensely decrease noise while printer is printing, within 40DB while printing.
Germany IGUS Mute Drag Chain Utilize on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
High quality Automatic ink absorption cleaning control unit, which could greatly extend print head life span.
Use non-VOC environmental UV curing ink, clear and perfect printing quality, no bias color, no mixing color, waterproof, wear-resistant. Color with CMYK white and varnish optional for glossy surface printing.
| Product Model | YC2513H |
| Printhead Type | EPSON |
| Printhead Number | 2-4 heads |
| Ink Characteristics | UV Curing Ink (VOA Free) |
| Ink Reservoirs | Refillable on the fly while printing 1000ml per color |
| LED UV Lamp | More than 30,000-hours life |
| Printhead Arrangement | CMYKW V optional |
| Printhead Cleaning System | Automatic Cleaning System |
| Guide Rail | Taiwan HIWIN |
| Working Table | Vacuum Sucking |
| Printing Size | 2500 * 1300 mm |
| Print Interface | USB 2.0 / USB 3.0 / Ethernet Interface |
| Media Thickness | 0 - 100 mm |
| Life of Printed Image | 3 years (outdoor), 10 years (indoor) |
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. |
| Print Resolution & Speed |
720X600dpi (4PASS): 4-16 sqm/h 720X900dpi (6PASS): 3-11 sqm/h 720X1200dpi (8PASS): 2-8 sqm/h |
| RIP Software | Photoprint / RIP PRINT Optional |
| Power Supply | 220V 50/60Hz (±10%) |
| Power | 3100W |
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% |
| Machine Dimension | 3.7 * 2.08 * 1.26 m |
| Packing Dimension | 3.9 * 1.85 * 1.43 m |
| Weight | 800 kg |
| Warranty | 12 months exclude the consumables |
YC2513H UV flatbed printer is to replace the traditional printing machines, realized one-time printing work instead of whole traditional complicated process.
YC2513H UV flatbed printer has been widely used in different industries including advertisement and signs, furniture, house decoration, arts and painting, package and label, vision designs, etc. Its outstanding advantage is that, it could print on limitless materials like acrylic, glass, ceramic tile, woods, MDF, steel, foam boards, paper, PVC, corrugated cardboard, banner flex, canvas, mesh paper, sticker and all kinds of flat materials.
YC2513H UV flatbed printer printing solutions which means it can work for orders without MOQ, and output image is easier to manage with original designs. All of print work can be finished one time with simple operation and high profits, which will be a big fortune for your business.
The YC2513H can print on virtually all flat substrate materials, including acrylic, glass, ceramic tile, woods, MDF, steel, foam boards, paper, PVC, corrugated cardboard, banner flex, canvas, mesh paper, stickers, and more.
It features a generous printing table size of 2500mm × 1300mm, supports media thickness from 0 to 100mm, and can handle a maximum material weight of up to 50kg.
Yes, it supports simultaneous printing of CMYK colors, white, and varnish. It provides multiple white printing modes and varnish capability for premium glossy surface finishes.
The prints utilize high-quality, non-VOC environmental UV curing ink that is waterproof and wear-resistant, offering an image life of approximately 3 years for outdoor use and up to 10 years indoors.
The machine is configured with 2 to 4 Japanese Epson heads (compatible with DX5, DX7, XP600, TX800, and I3200), featuring 180 nozzles across 6 or 8 channels for ultra-high precision output.
The printer achieves up to 35 sqm/h in production quality mode, 25 sqm/h in high quality mode, and 20 sqm/h in super high-quality mode. Under multi-pass settings, it delivers 4-16 sqm/h (4PASS), 3-11 sqm/h (6PASS), and 2-8 sqm/h (8PASS).
