| Product Model | YC2030L | |||
| Printhead Type | RICOH GEN5 / GEN6 / KM1024I / SPT1024GS | |||
| Printhead Number | 2-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOC Free) | |||
| Ink Reservoirs | Refillable on the fly while printing / 2500ml per color | |||
| LED UV Lamp | More than 30,000-hours life, made in Korea | |||
| Printhead Arrangement | CMYK LC LM W V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide Rail | TAIWAN HIWIN / THK Optional | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 2000 * 3000mm | |||
| Print Interface | USB2.0 / USB3.0 / Ethernet Interface | |||
| Media Thickness | 0 - 100mm | |||
| Print Resolution & Speed | 720 X 600 dpi | 4 PASS | 15 - 33 sqm/h | (GEN6 is 40% faster than this speed) |
| 720 X 900 dpi | 6 PASS | 10 - 22 sqm/h | ||
| 720 X 1200 dpi | 8 PASS | 8 - 18 sqm/h | ||
| Life of Printed Image | 3 years (outdoor), 10 years (indoor) | |||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz (±10%) | |||
| Power | 3100W | |||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | |||

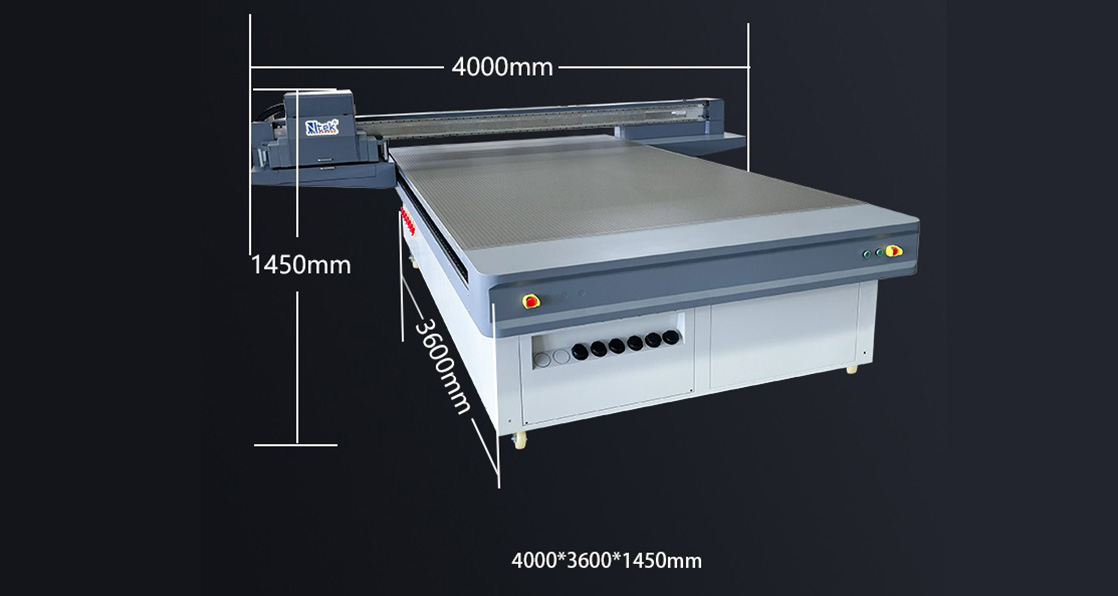

| Machine Dimension | 4.0 * 3.6 * 1.45m | |||
| Packing Dimension | 4.04 * 2.2 * 1.24m / 3.66 * 0.7 * 0.8m | |||
| Weight | 1500kg | |||
| Warranty | 12 months (exclude consumables) | |||

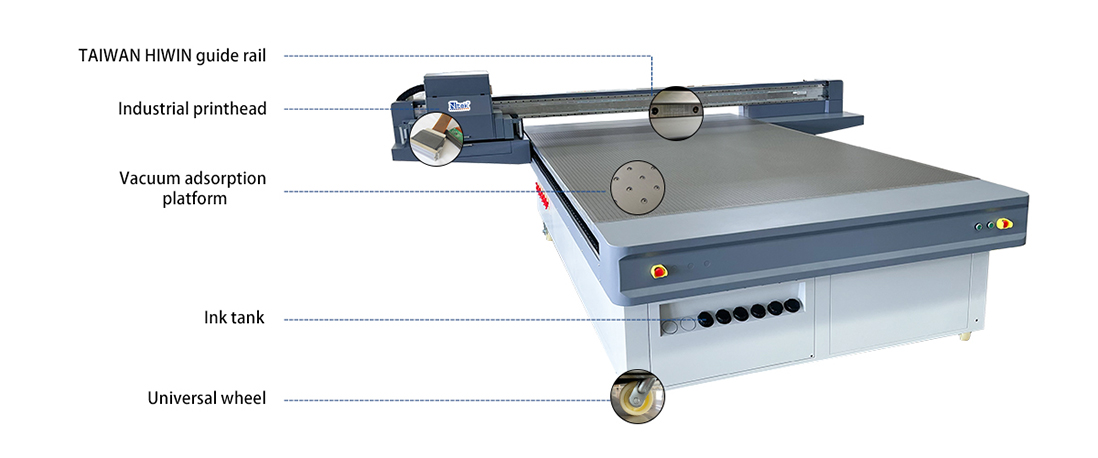

Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
YC2030L offers incomparable print capabilities, permitting you to explore a new world of merchandise and applications, including heavy, rigid materials up to four inches thick. It is designed to print higher gradient color in signage and decoration industry, makes background wall of more visual impact, and gain more impressive layering with bump impact.
Industrial-grade Toshiba/Ricoh Print head is very robust and particularly developed for high end industrial printing. It is a huge step forward in print quality and printing speed. It is designed with longevity and robustness in mind and widely used in many latest industrial ink jet printers.
