Printing table size
2000mm×3000mm
Max material weight
50kg
Maximum material height
100mm

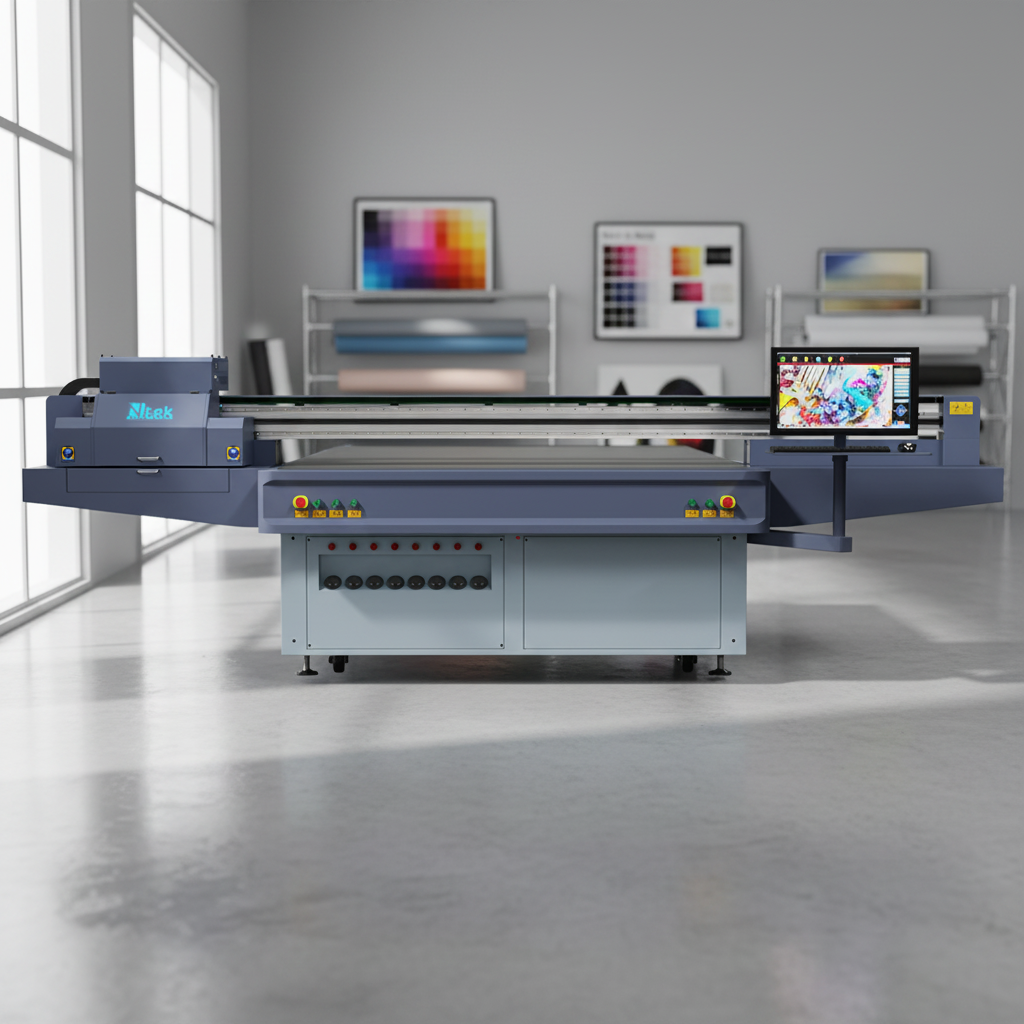

YC2030L offers incomparable print capabilities, permitting you to explore a new world of merchandise and applications, including heavy, rigid materials up to four inches thick. It is designed to print higher gradient color in signage and decoration industry, makes background wall of more visual impact, and gain more impressive layering with bump impact.
Industrial-grade Toshiba/Ricoh Print head is very robust and particularly developed for high end industrial printing. It is a huge step forward in print quality and printing speed. It is designed with longevity and robustness in mind and widely used in many latest industrial ink jet printers.
Standardizing the behavior on system basis, get our team together on affinity basis, driving the development by mechanism, changing the status and achieving our goal with our strategy.
The standard of products is equal to the satisfaction of our customers (users).
Brand + Clients + After sales service = the Value of Ntek.
We constantly innovate to increase production capacity and efficient, save production cost and serve our clients.
Customer first, integrity-based. Customers'satisfaction is our final destination.
| Product Model | YC2030L | |||
| Printhead Type | RICOH GEN5/GEN6/KM1024I/SPT1024GS | |||
| Printhead Number | 2-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOC Free) | |||
| Ink reservoirs | Refillable on the fly while printing/2500ml per color | |||
| LED UV Lamp | more than 30000-hours life made in Korea | |||
| Printhead arrangement | CMYK LC LM W V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide Rail | TAIWAN HIWIN/THK Optional | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 2000*3000mm | |||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | |||
| Media Thickness | 0-100mm | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 15-33sqm/h | (GEN6 40% faster than this speed) |
| 720X900dpi | 6PASS | 10-22sqm/h | ||
| 720X1200dpi | 8PASS | 8-18sqm/h | ||
| Life of printed image | 3 years(outdoor),10years(indoor) | |||
| File Format | TIFF,JPEG,Postscript,EPS,PDF etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz(10%) | |||
| Power | 3100W | |||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | |||
| Machine Dimension | 4*3.6*1.45m | |||
| Packing Dimension | 4.04*2.2*1.24m / 3.66*0.7*0.8m | |||
| Weight | 1500kg | |||
| Warranty | 12 months exclude the consumables | |||
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
Production quality 50sqm/h
High quality 35sqm/h
Super high-quality 25sqm/h
"Sincerity, Innovation, Rigorousness, and Efficiency" could be the persistent conception of our enterprise to the long-term to produce together with clients for mutual reciprocity and mutual profit for Hot Sale for Plotter Piezo Aluminum Acrylic Ceramic Dibond UV Flatbed Printer, Welcome all customers of home and abroad to go to our corporation, to forge a outstanding future by our cooperation.
Hot Sale for China Plotter and Flatbed Printer, Our company always concentrate on the development of the international market. We have now a lot of customers in Russia , European countries, the USA, the Middle East countries and Africa countries. We always follow that quality is foundation while service is guarantee to meet all customers.
The machine is capable of printing on rigid and heavy materials up to 100mm (4 inches) thick, including Aluminum, Acrylic, Ceramic, Dibond, and glass for signage and decoration industries.
The printer is compatible with industrial-grade heads including RICOH GEN5, GEN6, KM1024I, and SPT1024GS, supporting configurations from 2 to 8 heads.
Printed images have an outdoor lifespan of up to 3 years and an indoor lifespan of up to 10 years without significant fading.
The maximum printing dimension is 2000mm × 3000mm, with an operational media thickness ranging from 0 to 100mm and maximum weight capacity of 50kg.
It utilizes an energy-efficient Korean UV LED curing system with a service life exceeding 30,000 hours, paired with VOC-free UV curing inks.
The machine includes a 12-month standard warranty coverage, excluding consumable parts.
