Professional series of wide-format flatbed UV printer YC2513L. The main advantages of this series are photographic print quality, high-speed printing, as well as accurate color transmission. It has better print quality and better ink curation. Curing system UV lamp or High-intensity powerful UV-LED can be chosen. Cost-effective solution to any flat materials printing needs.
Printing table size
2500mm×1300mm
Max material weight
50kg
Maximum material height
100mm
| Product Model | YC2513L | |||
| Printhead Type | RICOH GEN5/GEN6/KM1024I/SPT1024GS | |||
| Printhead Number | 3-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOC Free) | |||
| Ink reservoirs | Refillable on the fly while printing/2500ml per color | |||
| LED UV Lamp | more than 30000-hours life made in Korea | |||
| Printhead arrangement | CMYK LC LM W V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||

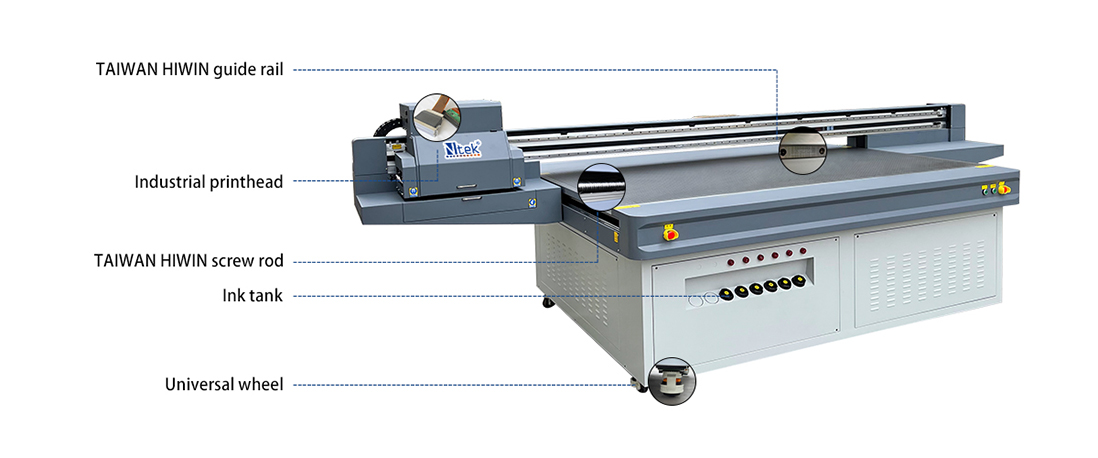

| Guide Rail | TAIWAN HIWIN/THK Optional | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 2500*1300mm | |||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | |||
| Media Thickness | 0-100mm | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 15-33sqm/h | (GEN6 40% faster than this speed) |
| 720X900dpi | 6PASS | 10-22sqm/h | ||
| 720X1200dpi | 8PASS | 8-18sqm/h | ||
| Life of printed image | 3 years(outdoor), 10years(indoor) | |||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz(10%) | |||
| Power | 3100W | |||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | |||

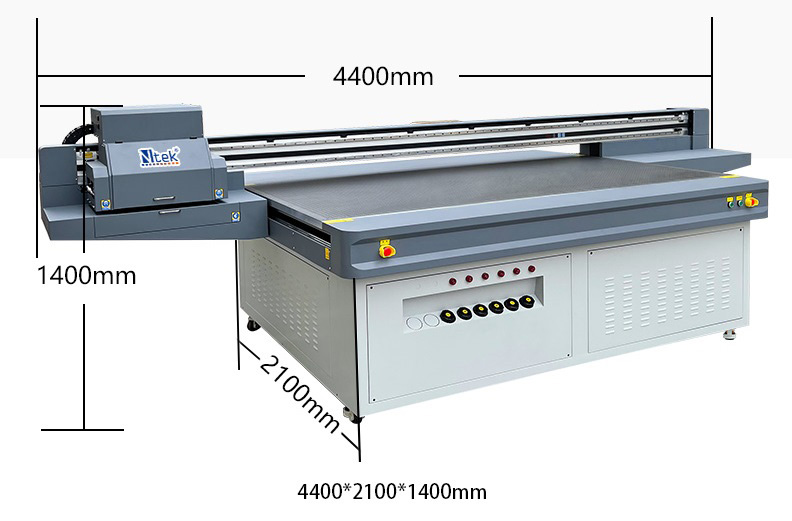

| Machine Dimension | 2.1*4.4*1.4mm | |||
| Packing Dimension | 4.6*2.3*1.65mm | |||
| Weight | 1200kg | |||
| Warranty | 12 months exclude the consumables | |||
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.
NTEK flatbed printer with newest digital inkjet printing technology offers users direct-printing capabilities onto a virtually limitless choice of three-dimensional media. In addition to supplying technology for product customization, We offers a range of small and large UV printer devices. NTEK UV flatbed printer utilizes state-of-the-art technology to deliver a powerful and reliable digital alternative to traditional screen print operations.
NTEK UV flatbed printer can print on the following materials: Glass, plastic, metal, leather, acrylic, wood, ceramic, PVC, ABS, stone, cardboard, paper, cylinder bottles, balls, pens, phone cases, id cards, bags, boxes, photo album, oil paintings, slipper etc.
