Printing table size
2500mm×1300mm
⚖️
Max material weight
50kg
↕️
Maximum material height
100mm
⚙️ Technical Specifications
| Product Model |
YC2513L |
| Printhead Type |
RICOH GEN5/GEN6/KM1024I/SPT1024GS |
| Printhead Number |
3-8 heads |
| Ink Characteristics |
UV Curing Ink (VOC Free) |
| Ink reservoirs |
Refillable on the fly while printing / 2500ml per color |
| LED UV Lamp |
more than 30000-hours life made in Korea |
| Printhead arrangement |
CMYK LC LM W V Optional |
| Printhead Cleaning System |
Automatic Cleaning System |
| Guide Rail |
TAIWAN HIWIN/THK Optional |
| Working Table |
Vacuum Sucking |
| Printing Size |
2500*1300mm |
| Print Interface |
USB2.0/USB3.0/Ethernet Interface |
| Media Thickness |
0-100mm |
| Print Resolution & Speed |
720X600dpi |
4PASS |
15-33sqm/h |
(GEN6 40% faster than this speed) |
| 720X900dpi |
6PASS |
10-22sqm/h |
| 720X1200dpi |
8PASS |
8-18sqm/h |
| Life of printed image |
3 years(outdoor),10years(indoor) |
| File Format |
TIFF,JPEG,Postscript,EPS,PDF etc. |
| RIP Software |
Photoprint / RIP PRINT Optional |
| Power Supply |
220V 50/60Hz(10%) |
| Power |
3100W |
| Operation Environment |
Temperature 20 to 30 ℃, Humidity 40% to 60% |
| Machine Dimension |
2.1*4.4*1.4mm |
| Packing Dimension |
4.6*2.3*1.65mm |
| Weight |
1200kg |
| Warranty |
12 months exclude the consumables |
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.
Production quality: 35sqm/h
High quality: 25sqm/h
Super high-quality: 20sqm/h
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.

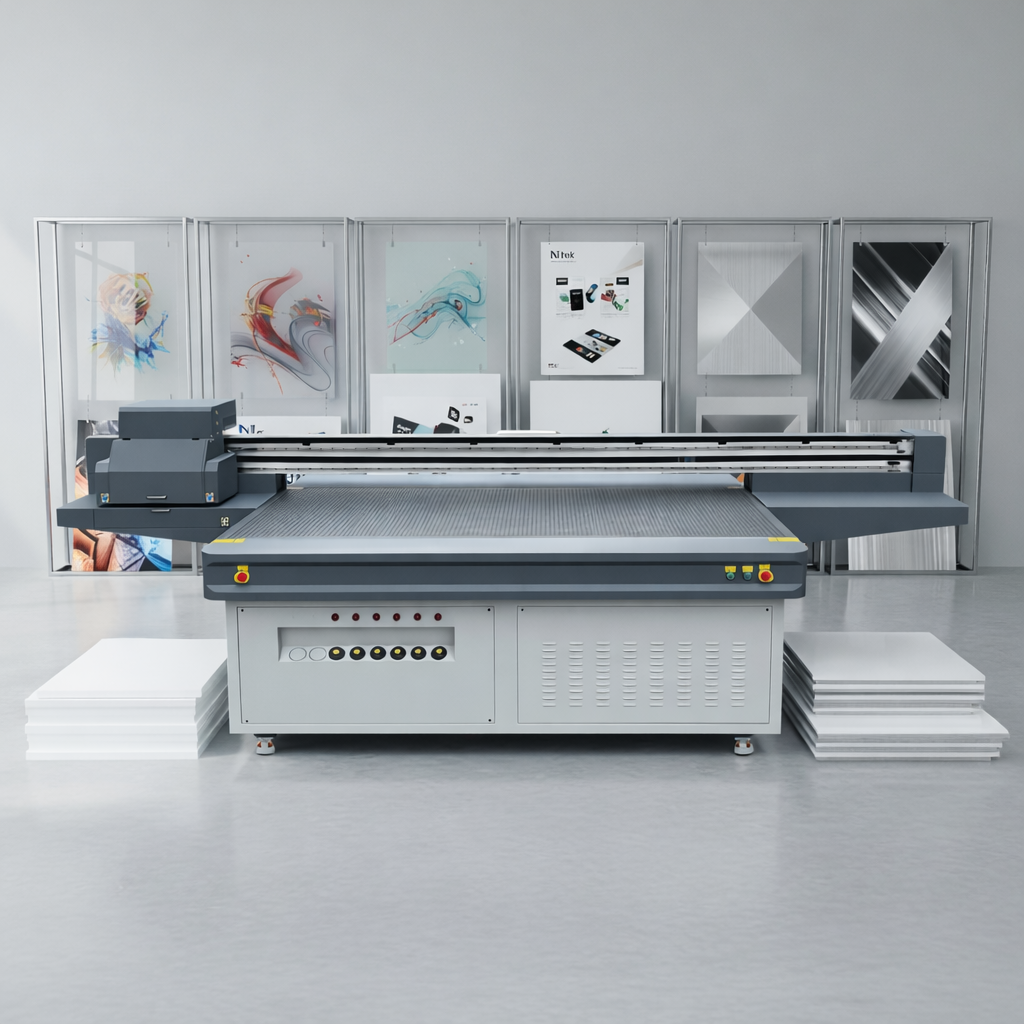

Professional series of wide-format flatbed UV printer YC2513L. The main advantages of this series are photographic print quality, high-speed printing, as well as accurate color transmission. It has better print quality and better ink curation. Curing system UV lamp or High-intensity powerful UV-LED can be chosen. Cost-effective solution to any flat materials printing needs.
With years of export experience along with excellent quality, advanced services and competitive prices, we have won numerous customers' trust and support.

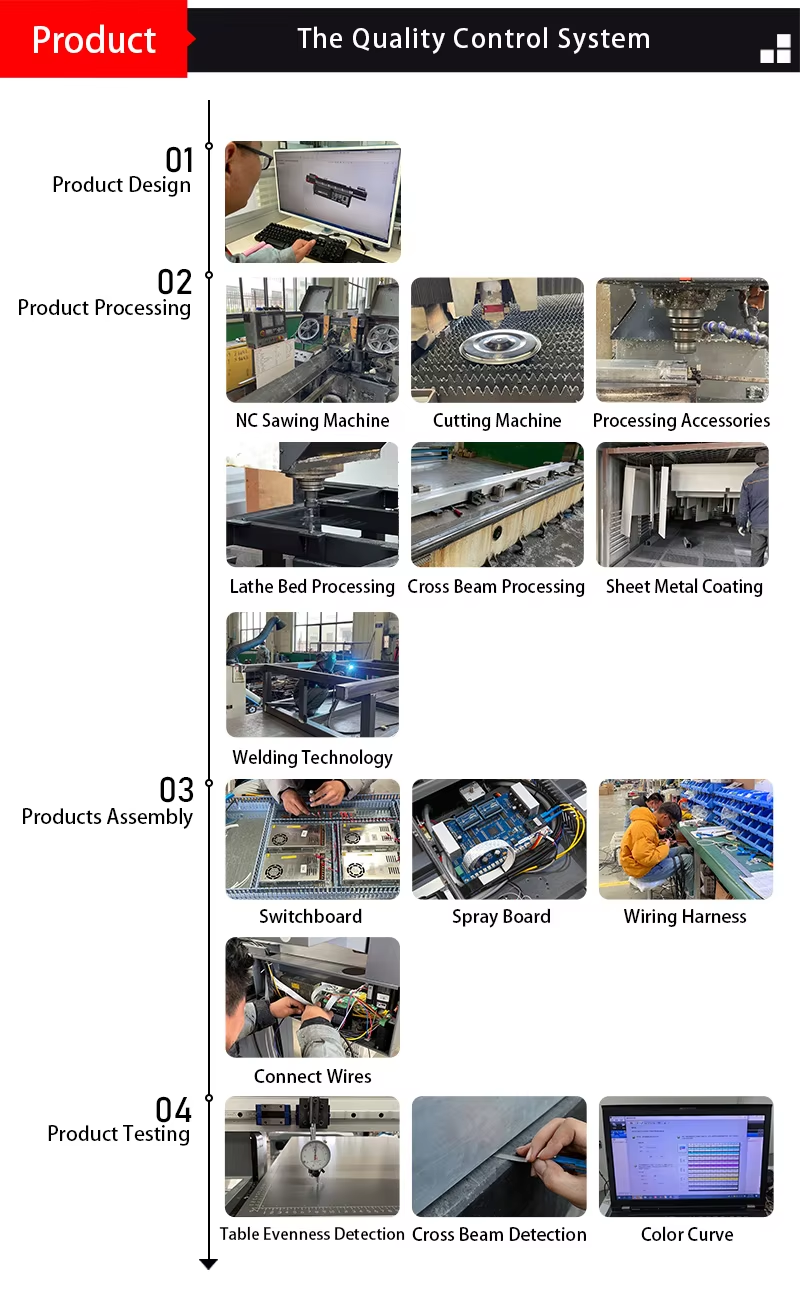

1. Every printer we delivered need to pass our second inspection before delivery.

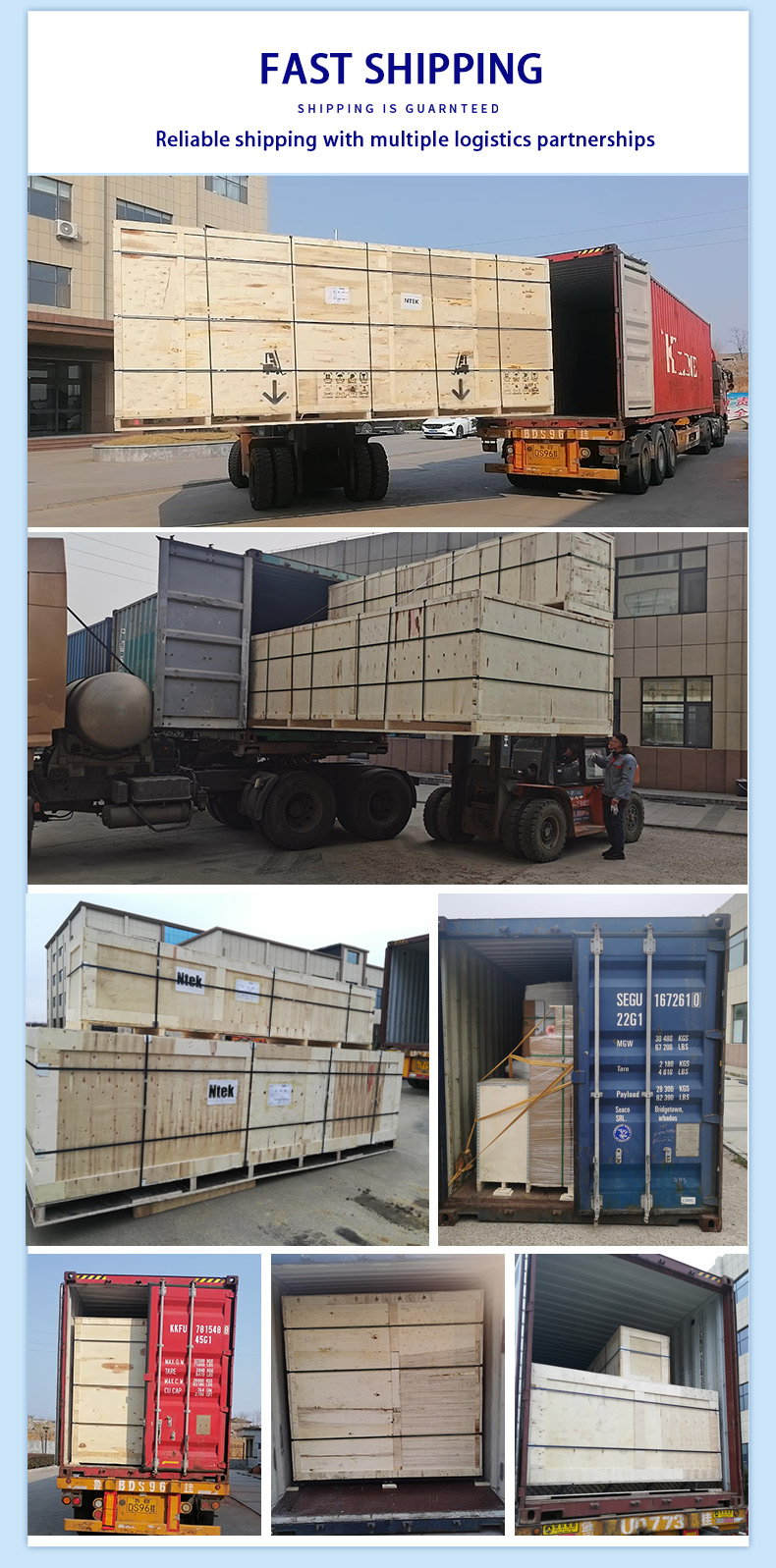

2. International standard wooden package for digital printing machine.
3. Our shipping forwarder could help you to deal with the custom clearance.
⭐ Key Equipment Advantages

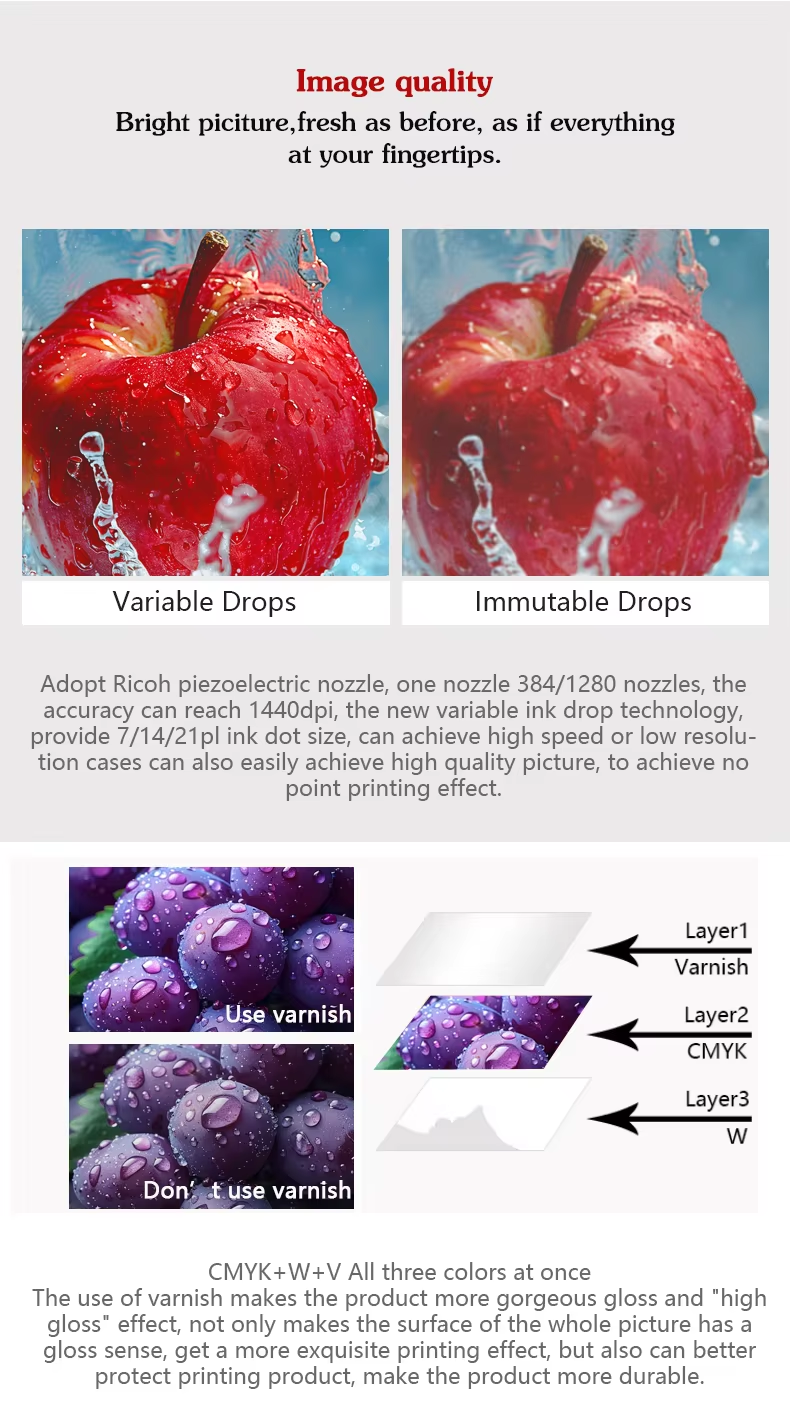

1. CMYK+LC+LM+W+Varnish 8 color ink type.
2. Compatible with RICHO/TOSHIBA print head.
3. Max. 2500mm*1300mm printing size.
4. With high-power vacuum suction fans.
5. With HIWIN/THK brand linear rail and screw, no noise, high speed, high resolution.
6. Automatically ink wipe, maintenance system, prevent scratching and avoid printing head clog in idle time.
7. Ink level sensor with light and alarm.
8. Magnetic shaking setting ink the ink tank which can twirling in the bottle to avoid precipitation of white ink.
9. Automatic detecting exactly height sensor, avoiding print head scratch.
10. Stainless steel body of printer, no worry about the oxidation as ink drip on it.
NTEK flatbed printer with newest digital inkjet printing technology offers users direct-printing capabilities onto a virtually limitless choice of three-dimensional media. In addition to supplying technology for product customization, We offers a range of small and large UV printer devices. NTEK UV flatbed printer utilizes state-of-the-art technology to deliver a powerful and reliable digital alternative to traditional screen print operations.
Supported Materials: Glass, plastic, metal, leather, acrylic, wood, ceramic, PVC, ABS, stone, cardboard, paper, cylinder bottles, balls, pens, phone cases, id cards, bags, boxes, photo album, oil paintings, slipper etc.
🏢 About The Manufacturer

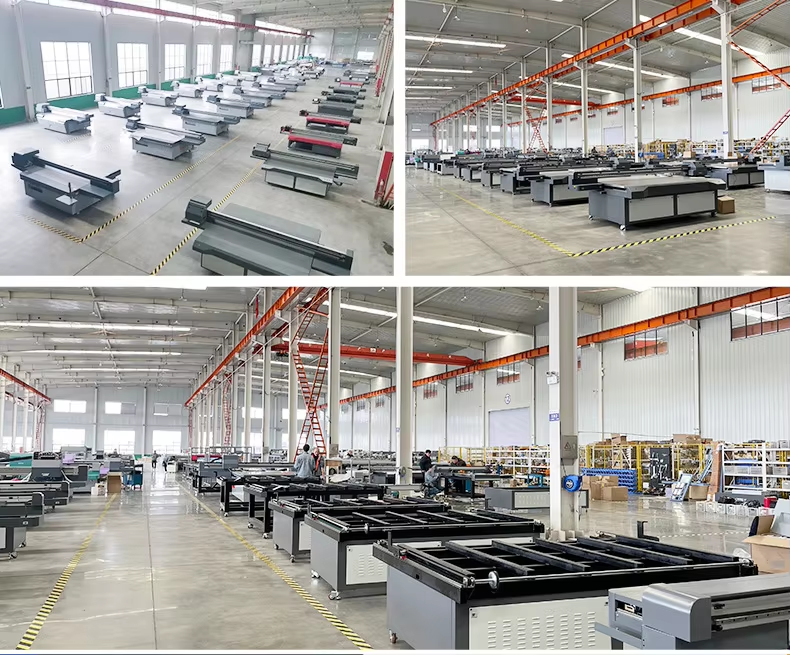

Jinan Yingcai Digital Technology Co., Ltd. is a leading manufacturer of high-quality digital inkjet UV flatbed and hybrid printers, known for reliability and excellent service. Our printers support both rigid material printing (Flatbed) and flexible roll-to-roll printing (Roll-to-Roll / UV Hybrid), making them suitable for a wide range of industrial and commercial applications. They are compatible with materials such as glass, PVC, acrylic, metal, wood, MDF, plywood, plastic, vinyl, foam board, ceramic tile, leather, aluminum, banners, polyethylene, plexiglass, photolithography substrates, PMMA, PC, PET, TPU, marble, stone, polycarbonate, and other hard surfaces. Typical applications include phone covers, yard signs, pens, bottles & cups, outdoor advertising, decoration accessories, embossed 3D printing, personalized printing, advertising signs, ceiling and wall backgrounds, car stickers, woodworking, advertising, arts and crafts,packaging and other hard surface printing projects. We have established more than 20 sales and service centers across China, providing comprehensive support including design consultation, installation, training, and maintenance. Our products are exported worldwide, serving clients in Southeast Asia, the Middle East, Africa, Europe, and the United States. Our company philosophy is to continuously improve product quality to meet customer needs. We are actively seeking global distributors and look forward to building long-term partnerships to expand into international markets.
❓ Frequently Asked Questions (FAQ)
Q: How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
Q: What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
Q: How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
Q: How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
Q: Are you a manufacturer or trade?
We are the manufacturer of UV flatbed printers.
Q: Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
