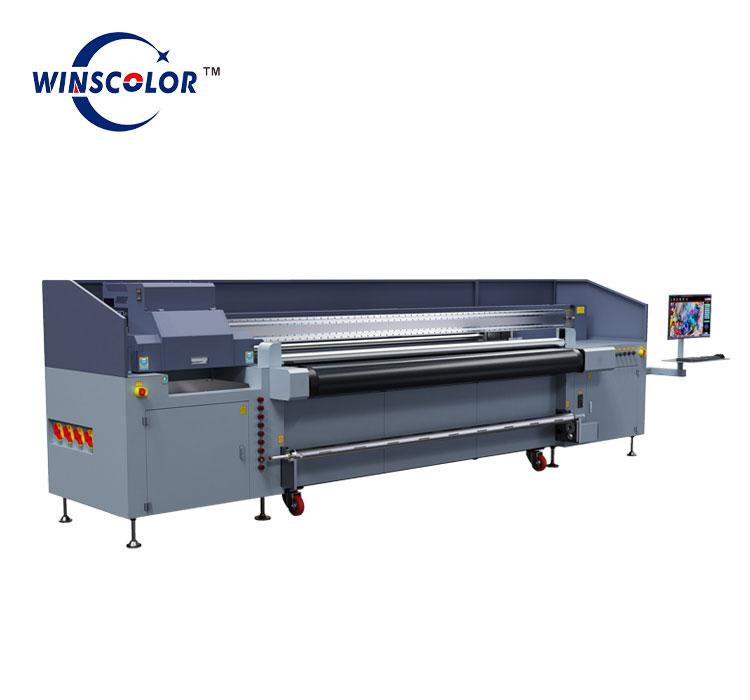

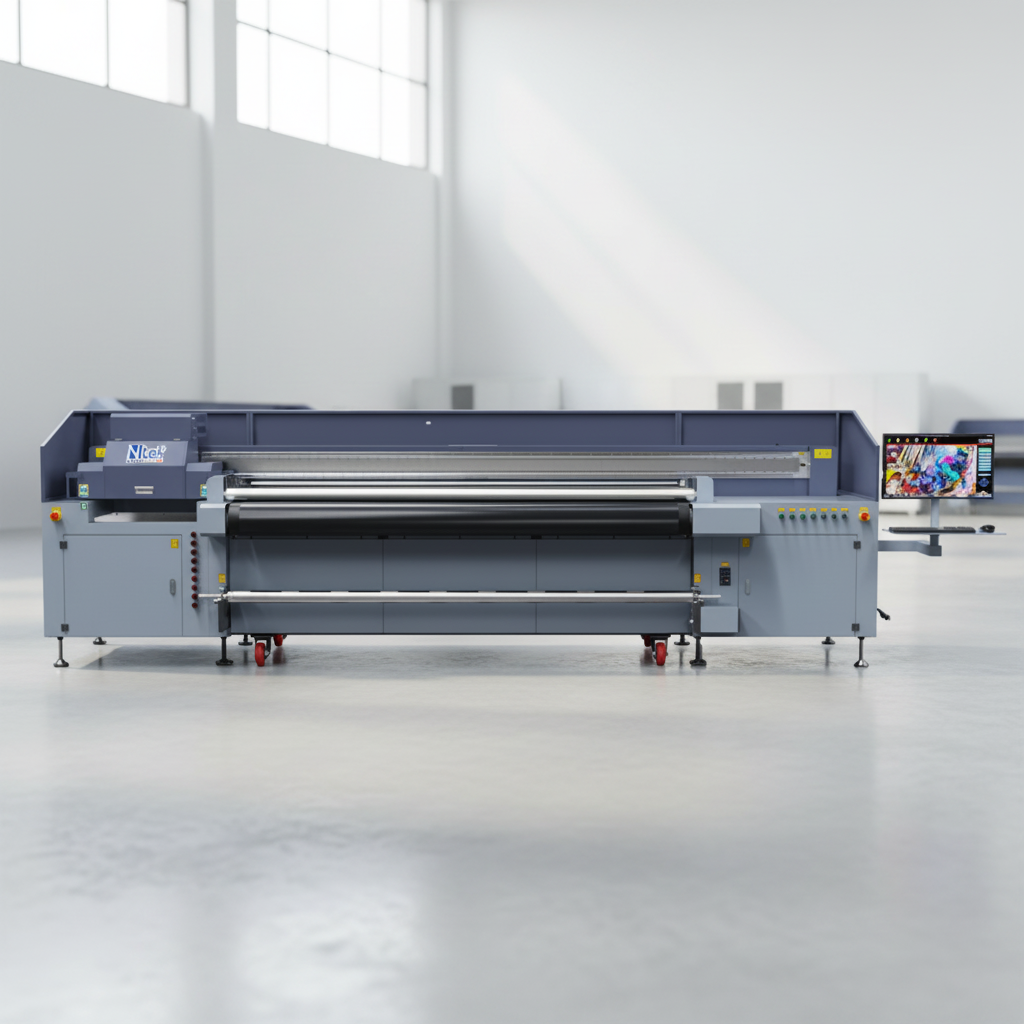

| Product Model | YC2500HR | |||
| Printhead Type | RICOH GEN5 / GEN6 / KM1024I / SPT1024GS | |||
| Printhead Number | 2-8 units | |||
| Ink Characteristics | UV Curing Ink (VOC Free) | |||
| Lamp | UV LED lamp | |||
| Printhead Arrangement | C M Y K LC LM W V (optional) | |||

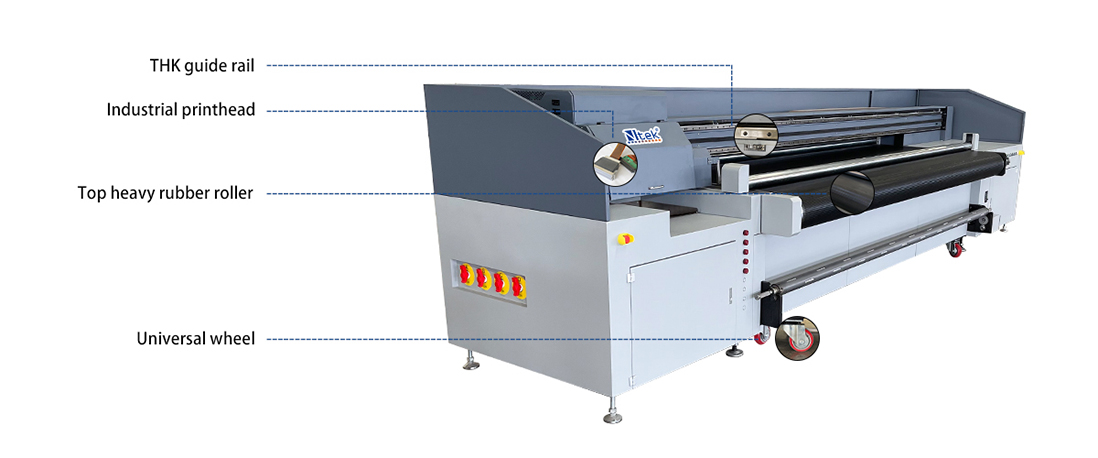

| Guide Rail | TAIWAN HIWIN / THK (Optional) | |||
| Working Table | Anodized aluminum with 4-section vacuum sucking | |||
| Printing Width | 2500mm | |||
| Coiled Media Diameter | 200mm | |||
| Media Weight | 100kg Max | |||
| Print Interface | USB2.0 / USB3.0 / Ethernet Interface | |||
| Media Thickness | 0-100mm (higher can be customized) | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 15-33sqm/h | (GEN6 is 40% faster than this speed) |
| 720X900dpi | 6PASS | 10-22sqm/h | ||
| 720X1200dpi | 8PASS | 8-18sqm/h | ||
| RIP Software | Photoprint / RIP PRINT (Optional) | |||
| Supported Media | Wallpaper, flex banner, glass, acrylic, wood board, ceramic, metal plate, PVC board, corrugated board, plastic, etc. | |||
| Media Handling | Automatic Release / Take Up | |||

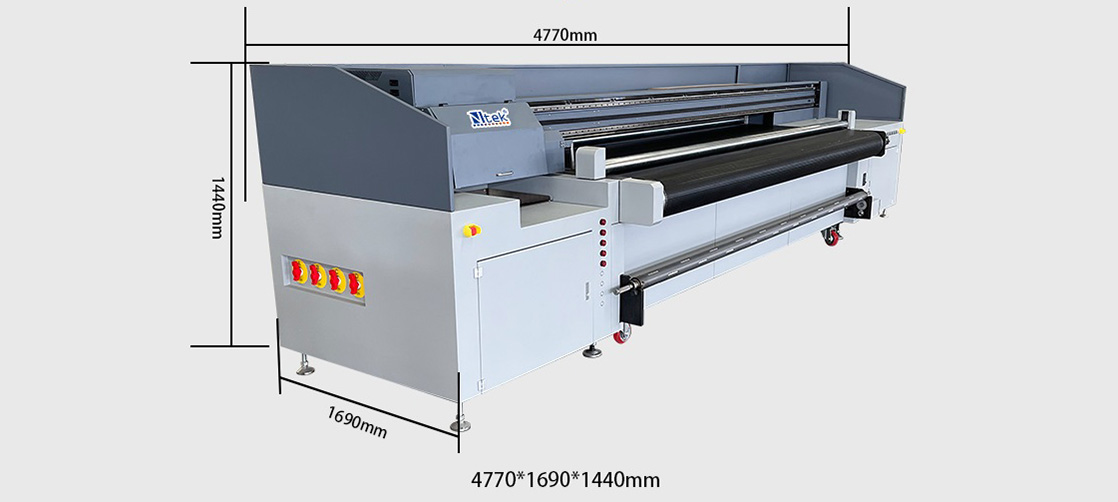

| Machine Dimension | 4770 * 1690 * 1440mm | |||
| Weight | 2500kg | |||
| Safety Certification | CE Certificate | |||
| Image Format | TIFF, JPEG, Postscript, EPS, PDF, etc. | |||
| Input Voltage | Single Phase 220V±10% (50/60Hz, AC) | |||
| Working Environment | Temperature: 20℃-28℃ | Humidity: 40%-70% RH | |||
| Warranty | 12 months (exclude consumables related to ink, such as ink filter, damper, etc.) | |||
Adopting gray-level Ricoh stainless steel internal heating industrial printheads with superior speed and resolution. Engineered specifically for continuous, stable performance in 24/7 non-stop industrial production cycles.
Extra-wide and ultra-high precision engineered printing bed delivers unparalleled platform flatness and motion stability during large-format outputs.

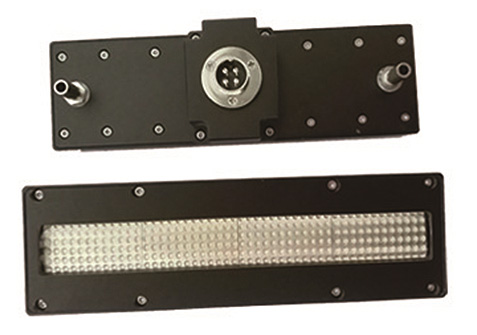

More economical and environmentally friendly than traditional mercury lamps. Extends broader material adaptability across heat-sensitive substrates while maximizing energy conservation and delivering a service lifespan of up to 20,000 hours.

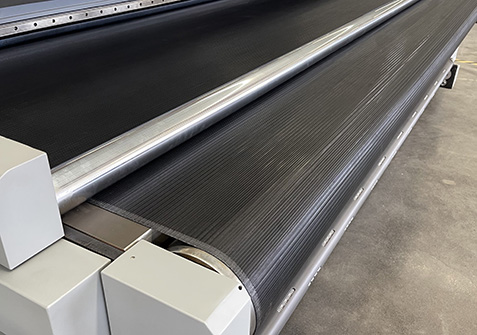

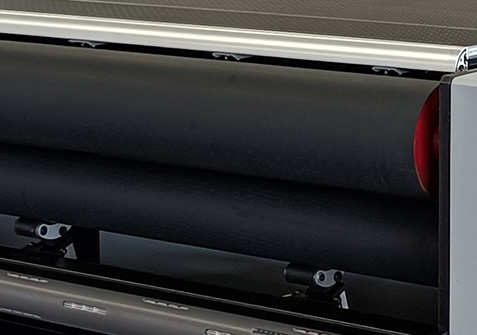

Adopts an engineered solid big steel roller system to guarantee media feeds without wrinkling or tracking off-center, ensuring stable and reliable quantitative continuous manufacturing.

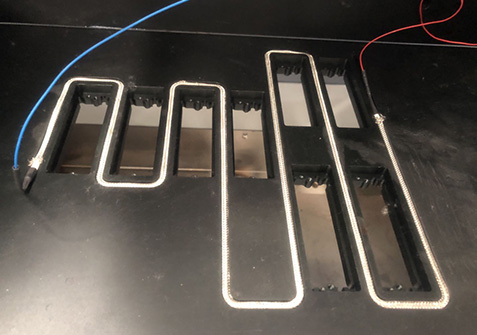

Equipped with external printhead heating systems to ensure ink viscosity stability and maintain constant ink fluency and jetting consistency under diverse workshop temperatures.
