Printing Table Size
900mm × 600mm
⚖
Max Material Weight
50kg
⇅
Maximum Material Height
100mm
| Product Model |
YC6090 |
| Printhead Type |
EPSON |
| Printhead Number |
2-4 heads |
| Ink Characteristics |
UV Curing Ink (VOA Free) |
| Ink reservoirs |
Refillable on the fly while printing 1000ml per color |
| LED UV Lamp |
more than 30000-hours life |
| Printhead arrangement |
CMYKW V optional |
| Printhead Cleaning System |
Automatic Cleaning System |
| Guide Rail |
Taiwan HIWIN |
| Working Table |
Vacuum Sucking |
| Printing Size |
900*600mm |
| Print Interface |
USB2.0/USB3.0/Ethernet Interface |
| Media Thickness |
0-100mm |
| Life of printed image |
3 years(outdoor),10years(indoor) |
| File Format |
TIFF,JPEG,Postscript,EPS,PDF etc. |
| Print Resolution & Speed |
720X600dpi |
4PASS |
4-16sqm/h |
| 720X900dpi |
6PASS |
3-11sqm/h |
| 720X1200dpi |
8PASS |
2-8sqm/h |
| RIP Software |
Photoprint/RIP PRINT Optional |
| Power Supply |
220V 50/60Hz(10%) |
| Power |
3100W |
| Operation Environment |
Temperature 20 to 30 ℃, Humidity 40% to 60% |

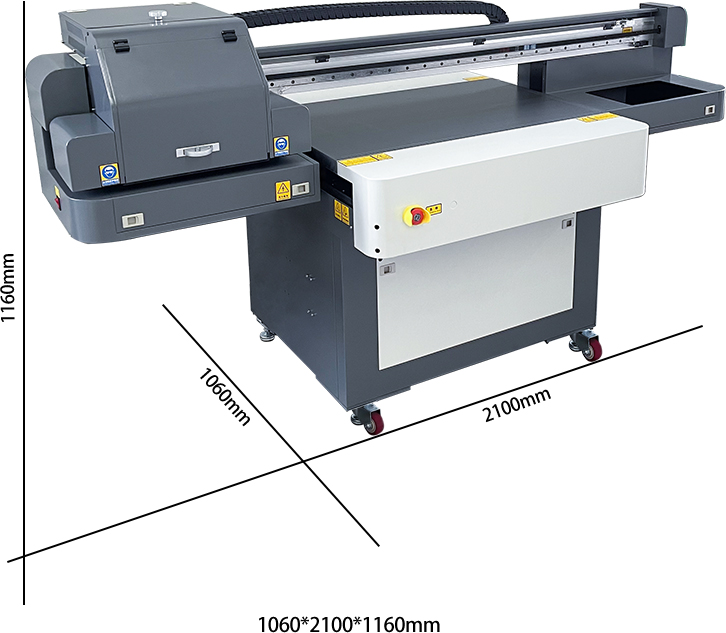

| Machine Dimension |
1060*2100*1160mm |
| Packing Dimension |
2435*1225*1335mm |
| Weight |
400kg |
| Warranty |
12 months exclude the consumables |
Equipped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high-precision printing.
The vacuum suction platform is easy to operate and save energy, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.
Production quality: 20sqm/h
Super high-quality: 10sqm/h

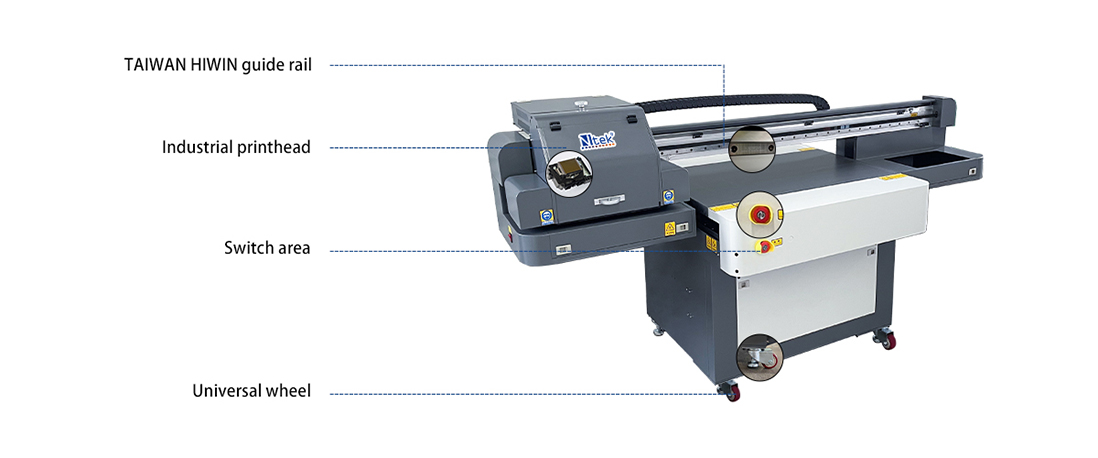

Use high precision mute liner guide rail, long service life, high stability, immensely decrease noise while printer is printing, within 40DB while printing.

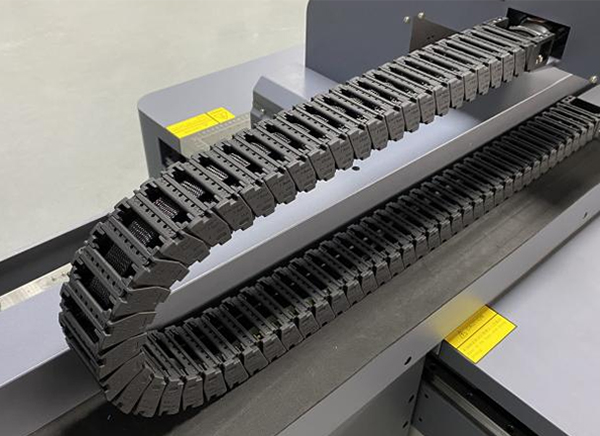

Utilize high mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
High quality Automatic ink absorption cleaning control unit. Which could greatly extend print head life span.
Use non-VOC environmental UV curing ink, clear and perfect printing quality, no bias color, no mixing color, waterproof, wear-resistant. Color with CMYK white and varnish optional for glossy surface printing.

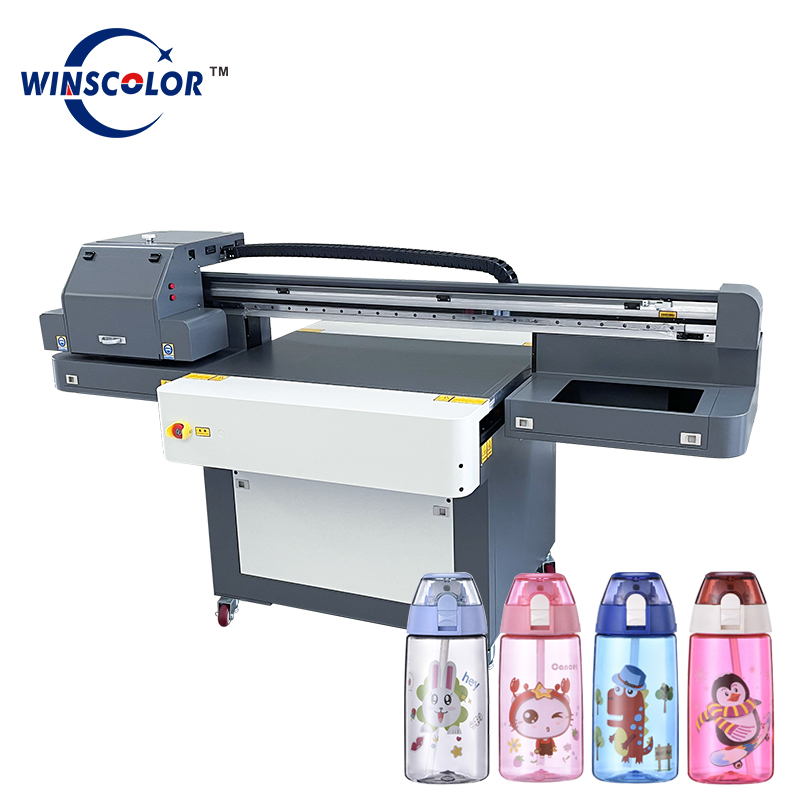

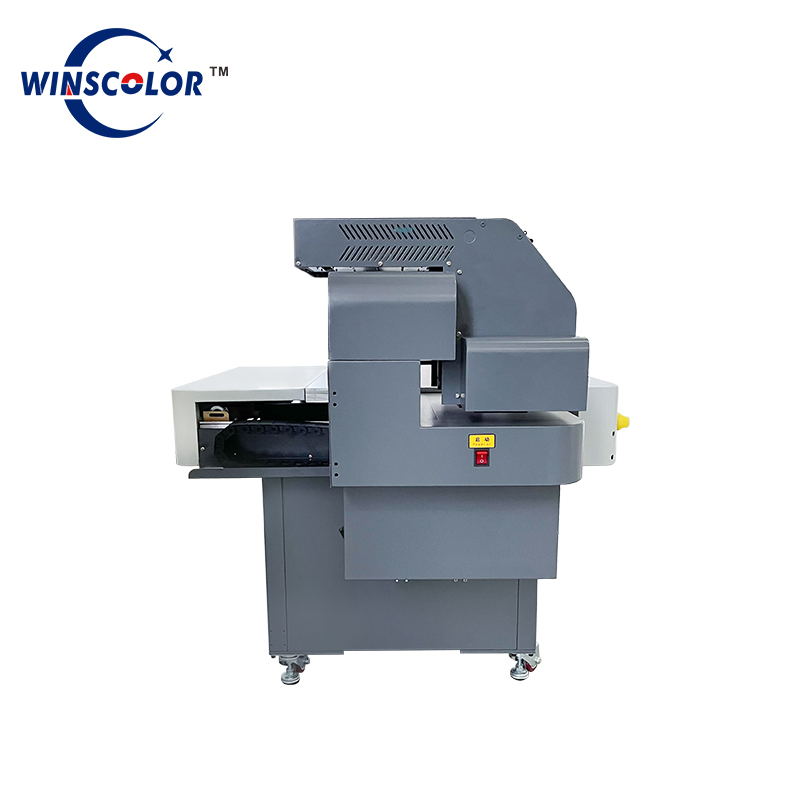

Our 6090 UV flatbed printer is also called 9060 UV flatbed printer or A1 UV flatbed printer, which is a "contactless" inkjet high-tech digital printing device that can print "photo level" color images on any material surface, like glass, ceramic tile, acrylic, metal, wood, PVC, plastic, marble, mobile case, pens, lenticular and bottles, etc.
190*60cm print size, 90cm is width, print speed is faster than 60cm width printer.
23.5 picoliter head nozzle provides a high-resolution print with edge-to-edge sharpness.
3Smart function of printing CMYK white and varnish in one time for high speed and quality.
4With thicker bridge and guide rail for stable working during high speed motion.
5With printhead carriage and crossbeam movement way more stable than working table move.
6With aluminum vacuum suction table for fixing the materials easily.
7With anti crash system to protect printhead from crash of materials.
8With white ink mixing function to avoid white ink precipitation.
9With ink alarm system to remind refill ink when necessary.
10Can add rotary device on vaccum suction table to bottles or cup, etc cylinder objects.
✓Decoration industry.
✓Glass, Ceramic industry.
✓Advertising & Sign industry.
✓Furniture and personalized products, etc.
1We are 13 year professional UV printer manufacturer in China with CE and ISO certified.
2With different product lines of UV flatbed printer, UV hybrid printer and roll to roll printer.
3With our own processing center, ensure timely production and stable spare parts supply.
4Can provide OEM service and customize different printer appearance for customers.
5With professional engineer for service on time.
6Free training online with video, manual, remotely control.
7Ntek printers have been recognized by both domestic and abroad customers.
8Ntek is dedicated to new product development, with strong research and development team.
Frequently Asked Questions (FAQ)
Q1: What materials can the YC6090 UV flatbed printer print on?
The printer utilizes non-contact UV inkjet technology, enabling direct printing on nearly any flat or rotary surface including glass, ceramic tile, acrylic, metal, wood, PVC, plastic, marble, phone cases, pens, and cylindrical objects like bottles.
Q2: Can this machine print white ink and varnish at the same time?
Yes, the system supports synchronized printing of CMYK, white, and varnish in a single pass, which significantly increases production speed and delivers exceptional glossy surface finishes and embossed effects.
Q3: What is the outdoor and indoor durability of the printed image?
Using high-adhesion, non-VOC environmental UV curing inks, printed images maintain resistance to water and abrasion, lasting up to 3 years in outdoor environments and up to 10 years indoors without noticeable fading.
Q4: How does the printer prevent printhead clogging and damage?
It comes equipped with an automatic lift cap cleaning system, an integrated white ink mixing mechanism to prevent sedimentation, and an intelligent anti-crash sensor to protect the printhead from surface collisions.
Q5: What warranty and technical support are provided?
The machine includes a 12-month warranty (excluding consumables). Comprehensive technical assistance is offered, featuring online remote troubleshooting, operation manuals, and detailed training videos provided by experienced engineers.
