What materials can a UV flatbed printer print on?

A UV flatbed printer prints directly on rigid substrates such as acrylic, PVC foam board, aluminium composite (Dibond), metal, glass, ceramic tile, wood, corrugated cardboard and leather. Glass, metal and ceramic usually need an adhesion primer for maximum scratch resistance.

What is the difference between a UV flatbed, roll-to-roll and hybrid printer?

A flatbed holds rigid boards on a vacuum table; a roll-to-roll printer feeds flexible media such as banner, vinyl and canvas from roll to roll; a hybrid printer uses a conveyor or roller system so one machine handles both rigid sheets and flexible rolls.

Which printheads do Winscolor UV printers use?

Printhead configuration depends on the model. The YC2513L flatbed, for example, is offered with industrial Ricoh Gen6 piezo printheads in a CMYK + LC + LM + White + Varnish configuration. Contact the sales team for the configuration that matches your output volume.

Can Winscolor printers print white ink and 3D varnish effects?

Yes. Models configured with white and varnish channels can lay down white underbase for transparent or dark media and build up gloss varnish layers for raised, tactile 3D effects.

Do you support overseas buyers after installation?

Winscolor provides remote video training, online troubleshooting and spare parts supply for overseas customers. Details are available on the Global Service page.

Wholesale Large Format Printing Machine Mural Banner Flatbed Printer Suppliers, Products

1 / 4

Wholesale Large Format Printing Machine Mural Banner Flatbed Printer Suppliers, Products

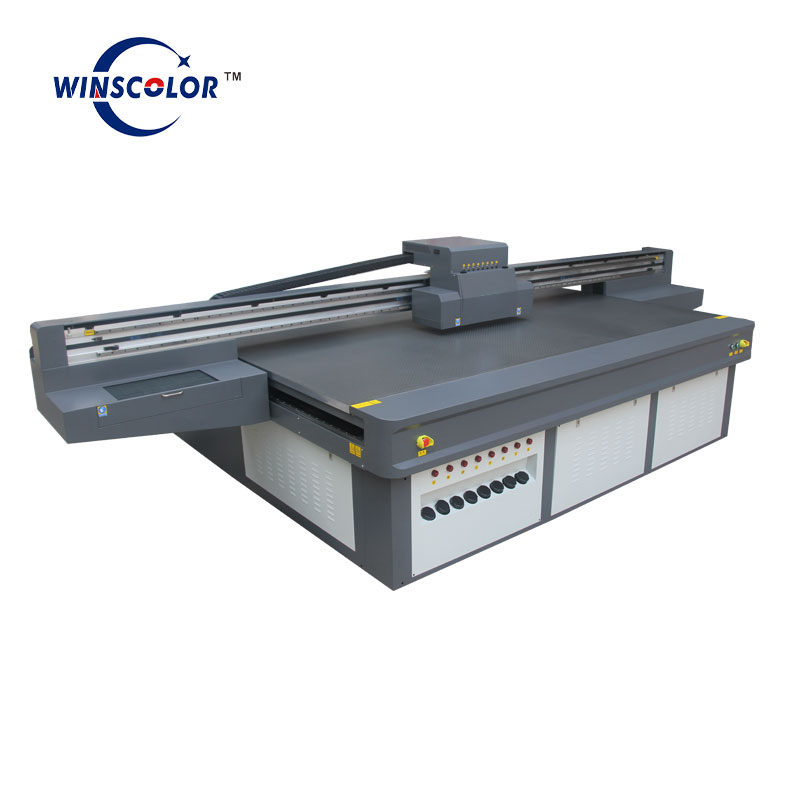

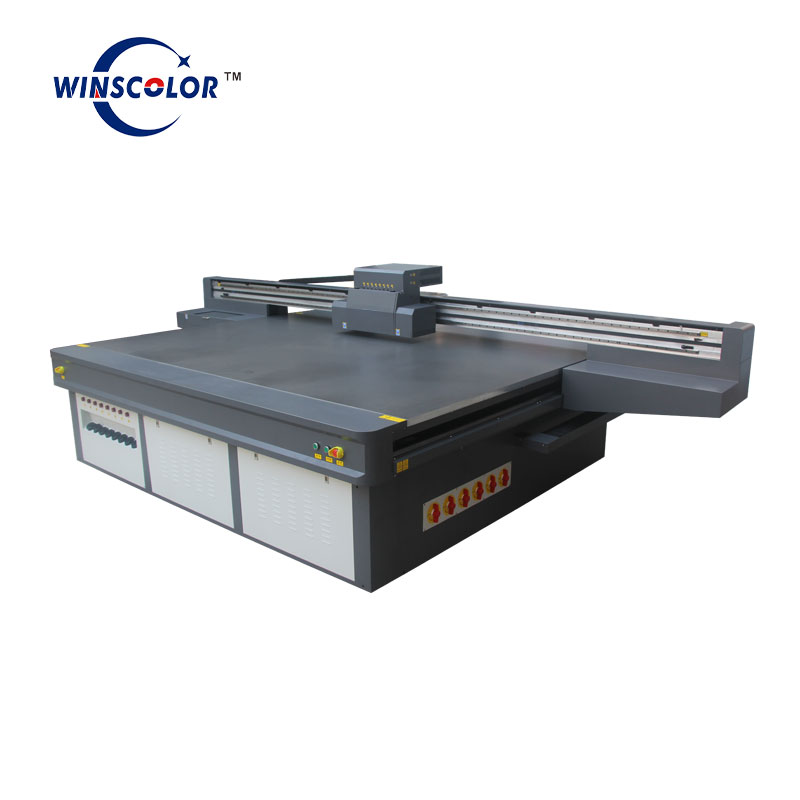

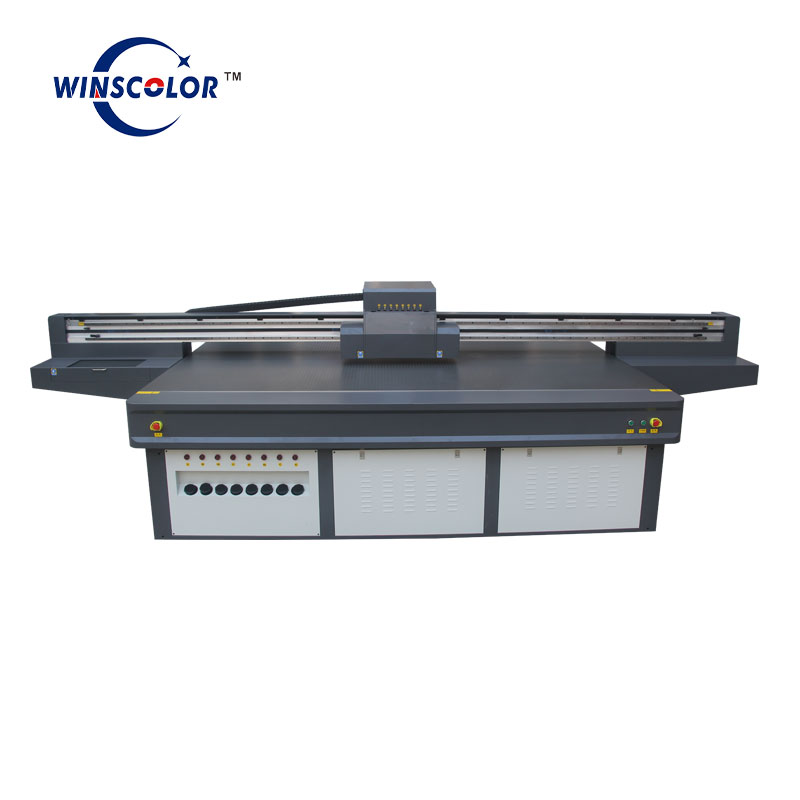

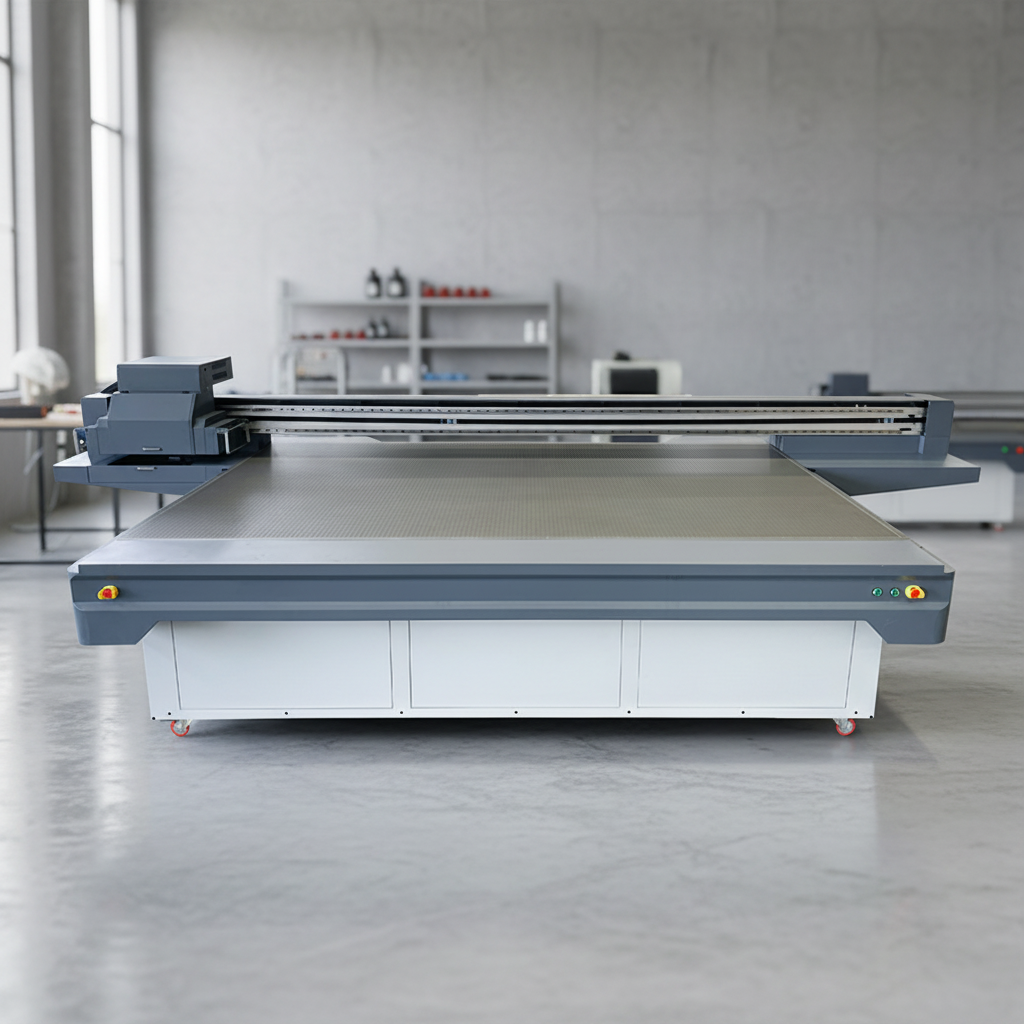

Professional series of wide-format flatbed UV printer. The main advantages of this series are photographic print quality, high-speed printing, as well as accurate color transmission. It has better print quality and better ink curation. Curing system UV lamp or High-intensity powerful UV-LED can be chosen. Cost-effective solution to any flat materials printing needs.

Send Inquiry

Product Description

Printing Table Size

2500mm×1300mm

Max Material Weight

50kg

Maximum Material Height

100mm

Technical Specifications

Product Model	YC3321L
Printhead Type	RICOH GEN5 / GEN6 / KM1024I / SPT1024GS
Printhead Number	2-8 heads
Ink Characteristics	UV Curing Ink (VOC Free)
Ink Reservoirs	Refillable on the fly while printing / 2500ml per color
LED UV Lamp	More than 30,000 hours life (Made in Korea)
Printhead Arrangement	CMYK LC LM W V Optional
Printhead Cleaning System	Automatic Cleaning System
Guide Rail	TAIWAN HIWIN / THK Optional
Working Table	Vacuum Sucking
Printing Size	3300*2100mm
Print Interface	USB2.0 / USB3.0 / Ethernet Interface
Media Thickness	0-100mm
Print Resolution & Speed	720X600dpi	4PASS	15-33sqm/h	(GEN6 40% faster than this speed)
	720X900dpi	6PASS	10-22sqm/h
	720X1200dpi	8PASS	8-18sqm/h
Life of Printed Image	3 years (outdoor), 10 years (indoor)
File Format	TIFF, JPEG, Postscript, EPS, PDF etc.
RIP Software	Photoprint / RIP PRINT Optional
Power Supply	220V 50/60Hz (10%)
Power	3100W
Operation Environment	Temperature 20 to 30 ℃, Humidity 40% to 60%
Machine Dimension	5.3 * 4.1 * 1.65m
Packing Dimension	5.52 * 2.25 * 1.55m / 4.3 * 0.85 * 1.1m
Weight	1800kg
Warranty	12 months exclude the consumables

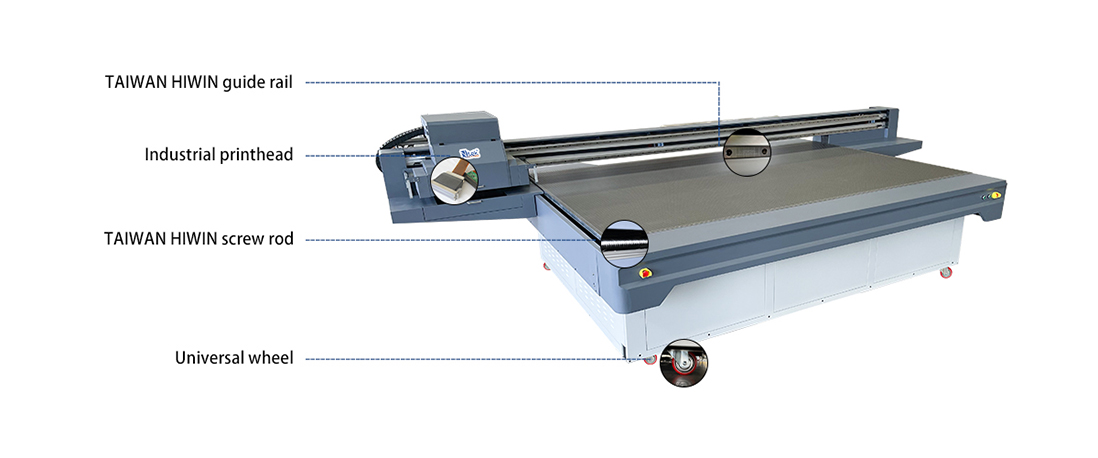

Engineered Components & Performance

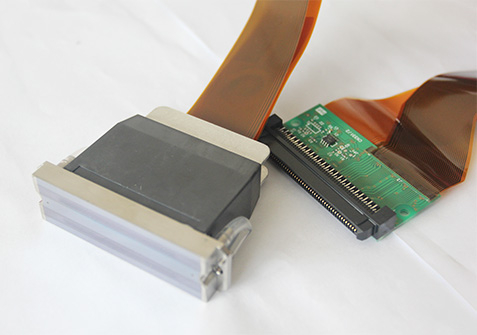

Ricoh Print Head

Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.

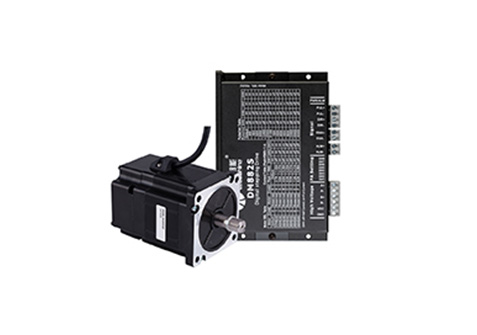

Panasonic Servo Motors And Drives

Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.

Production quality 50sqm/h

High quality 40sqm/h

Super high-quality 30sqm/h

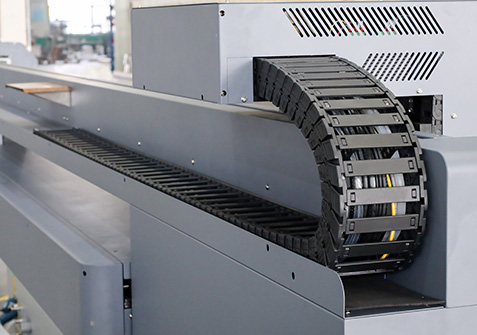

German IGUS Energy Chain

Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.

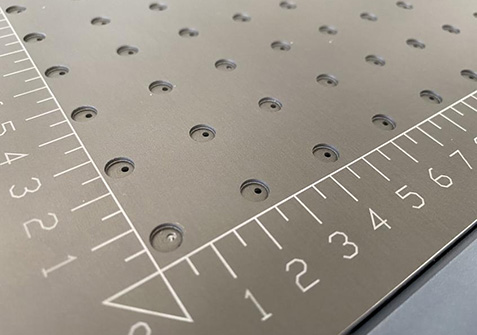

Vacuum Adsorption Platform

Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.

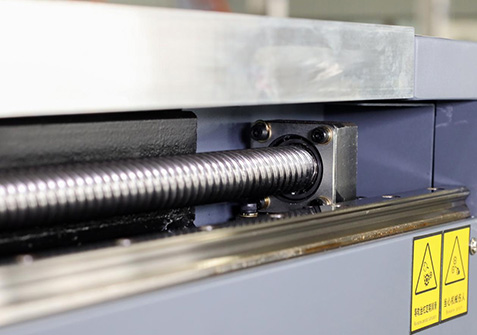

Taiwan HIWIN Screw Rod

Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.

Frequently Asked Questions (FAQ)

1. What printhead options and arrangements does the YC3321L support?

The YC3321L supports industrial RICOH GEN5, GEN6, KM1024I, and SPT1024GS printheads in configurations ranging from 2 to 8 heads, offering CMYK, LC, LM, White, and Varnish (W+V) color arrangements.

2. What are the maximum printable dimensions and material thickness?

The machine handles a maximum media printing size of 3300*2100mm, with an adaptable media thickness range from 0 to 100mm and maximum material weight capacity of 50kg on its sectionalized vacuum table.

3. What printing speeds can be achieved across different resolutions?

Production quality reaches up to 50sqm/h. At 720X600dpi (4PASS), the system prints at 15-33sqm/h; at 720X900dpi (6PASS), 10-22sqm/h; and at 720X1200dpi (8PASS), 8-18sqm/h. Gen6 printheads run 40% faster than standard speeds.

4. What is the expected durability of printed graphics?

Utilizing VOC-free UV curing inks, printed graphics offer superior outdoor durability of up to 3 years and indoor longevity of up to 10 years.

5. How does the ink refill system operate during long print runs?

The printer is equipped with high-capacity 2500ml-per-color ink reservoirs that can be refilled on the fly while actively printing, supporting continuous 24-hour industrial production without interruption.

6. What warranty and environmental conditions are recommended for operation?

The printer includes a 12-month warranty (excluding consumables). The recommended operating environment is a temperature of 20°C to 30°C and a relative humidity between 40% and 60%.
