| Product Model | YC2513R | |||
| Printhead Type | RICOH GEN5 / GEN6 / KM1024I / SPT1024GS | |||
| Printhead Number | 2-8 heads | |||
| Ink Characteristics | UV Curing Ink (VOC Free) | |||
| Ink Reservoirs | Refillable on the fly while printing, 2500ml per color | |||
| LED UV Lamp | More than 30,000-hours life, Made in Korea | |||
| Printhead Arrangement | CMYK LC LM W V Optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide Rail | TAIWAN HIWIN / THK Optional | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 2500 * 1300mm | |||
| Roller Material Width | 2500mm | |||
| Roller Material Diameter | 200mm | |||
| Print Interface | USB2.0 / USB3.0 / Ethernet Interface | |||
| Media Thickness | 0 - 100mm | |||
| Print Resolution & Speed | 720 X 600 dpi | 4 PASS | 15-33 sqm/h | (GEN6 is 40% faster than this speed) |
| 720 X 900 dpi | 6 PASS | 10-22 sqm/h | ||
| 720 X 1200 dpi | 8 PASS | 8-18 sqm/h | ||
| Life of Printed Image | 3 years (outdoor), 10 years (indoor) | |||
| File Format | TIFF, JPEG, Postscript, EPS, PDF, etc. | |||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz (±10%) | |||
| Power | 8500W | |||
| Operation Environment | Temperature: 20 to 30 ℃, Humidity: 40% to 60% | |||

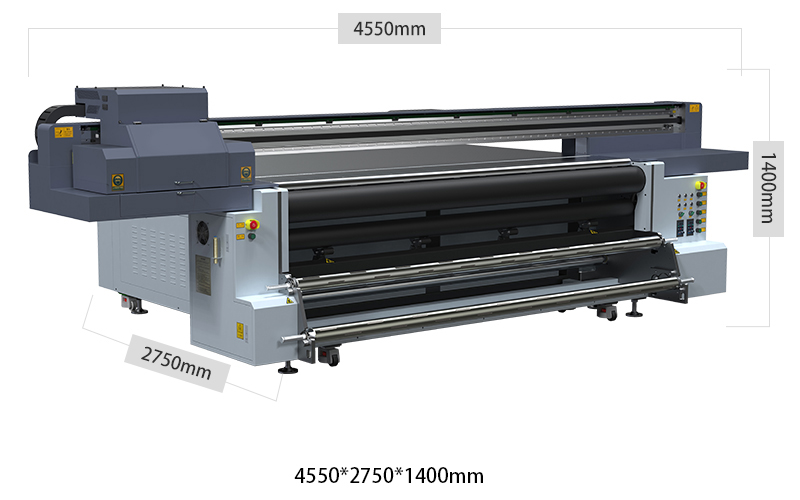

| Machine Dimension | 4.57 * 2.98 * 1.46m | |||
| Packing Dimension | 5 * 2.25 * 1.55m / 3.2 * 0.85 * 1.1m | |||
| Weight | 2000kg | |||
| Warranty | 12 months (excludes consumables related to ink, such as ink filter, damper, etc.) | |||

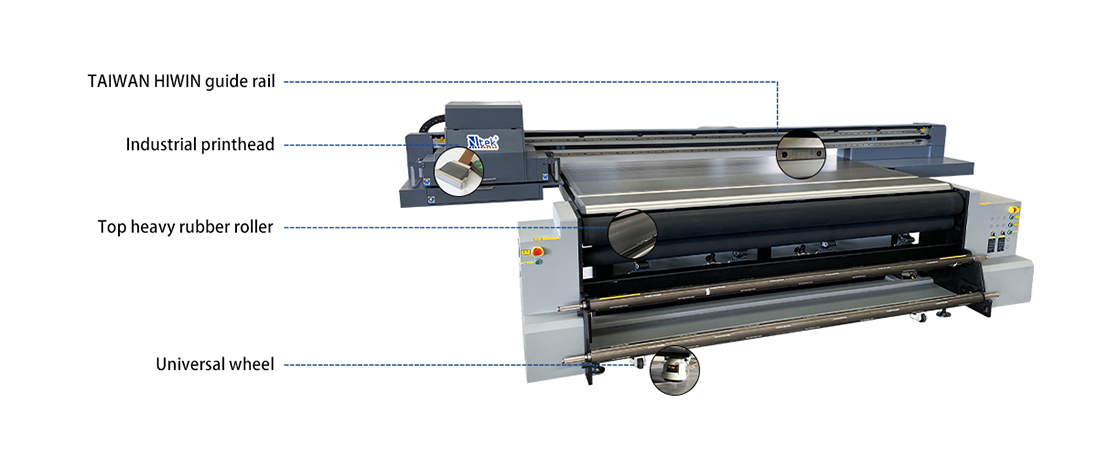

Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Using Panasonic servo motor and driver, effectively overcome the step loss problem of step motor. High speed printing performance is good, low speed running is stable, dynamic response is timely, running stable.
Germany IGUS mute drag chain on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
Adopting dual-level precision screw rod and imported Panasonic servo synchronous motors, ensure the screws rod on the both sides of Y axis synchronous running.

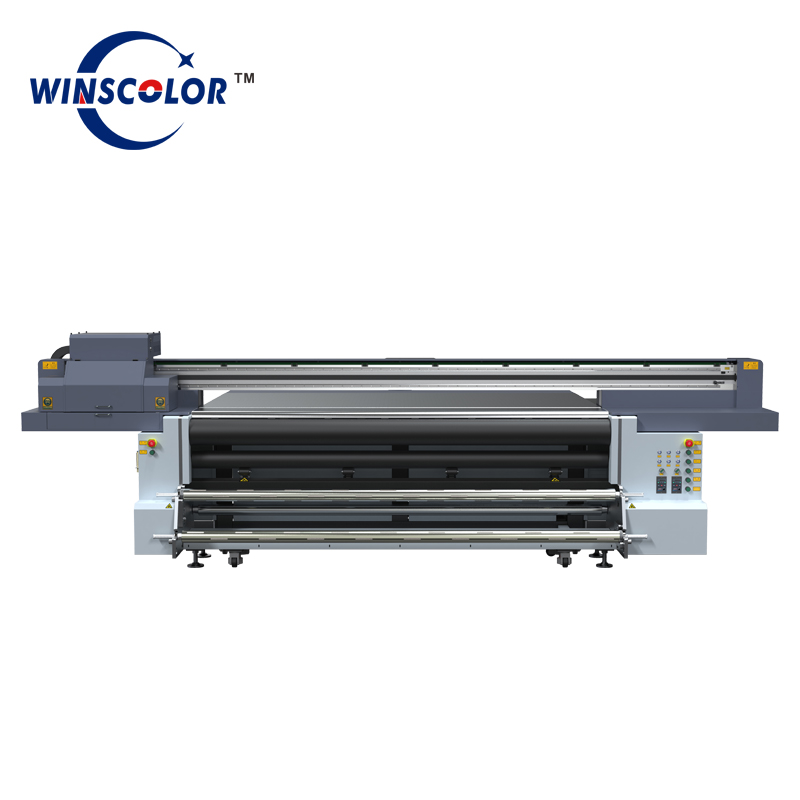

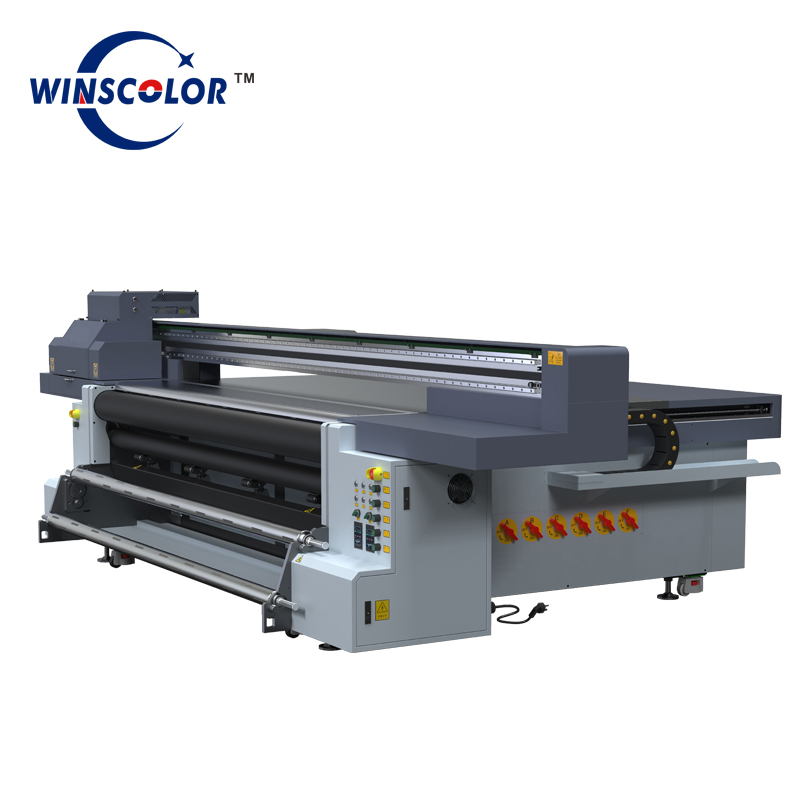

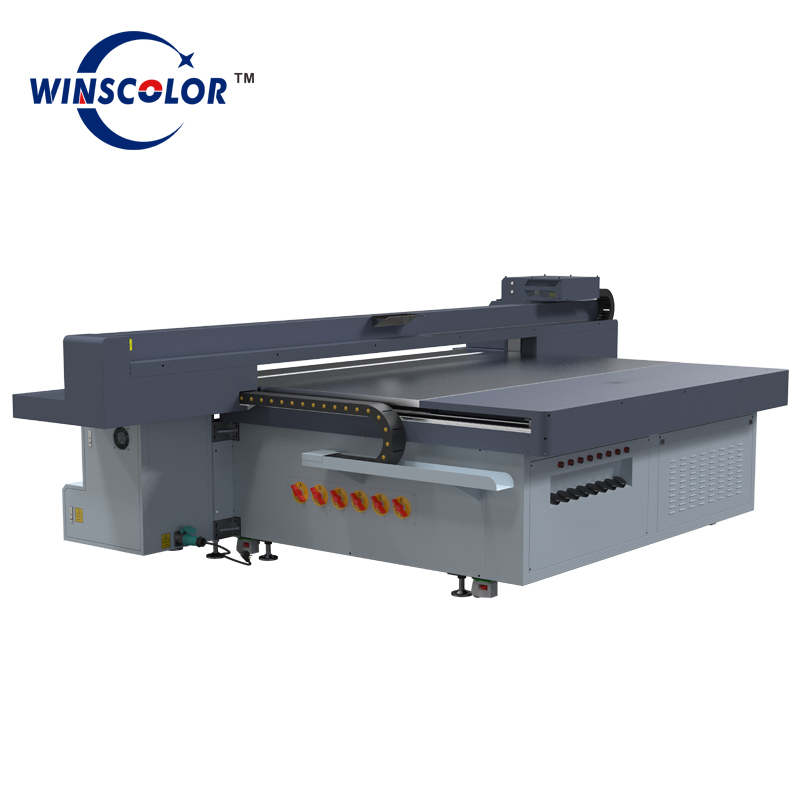

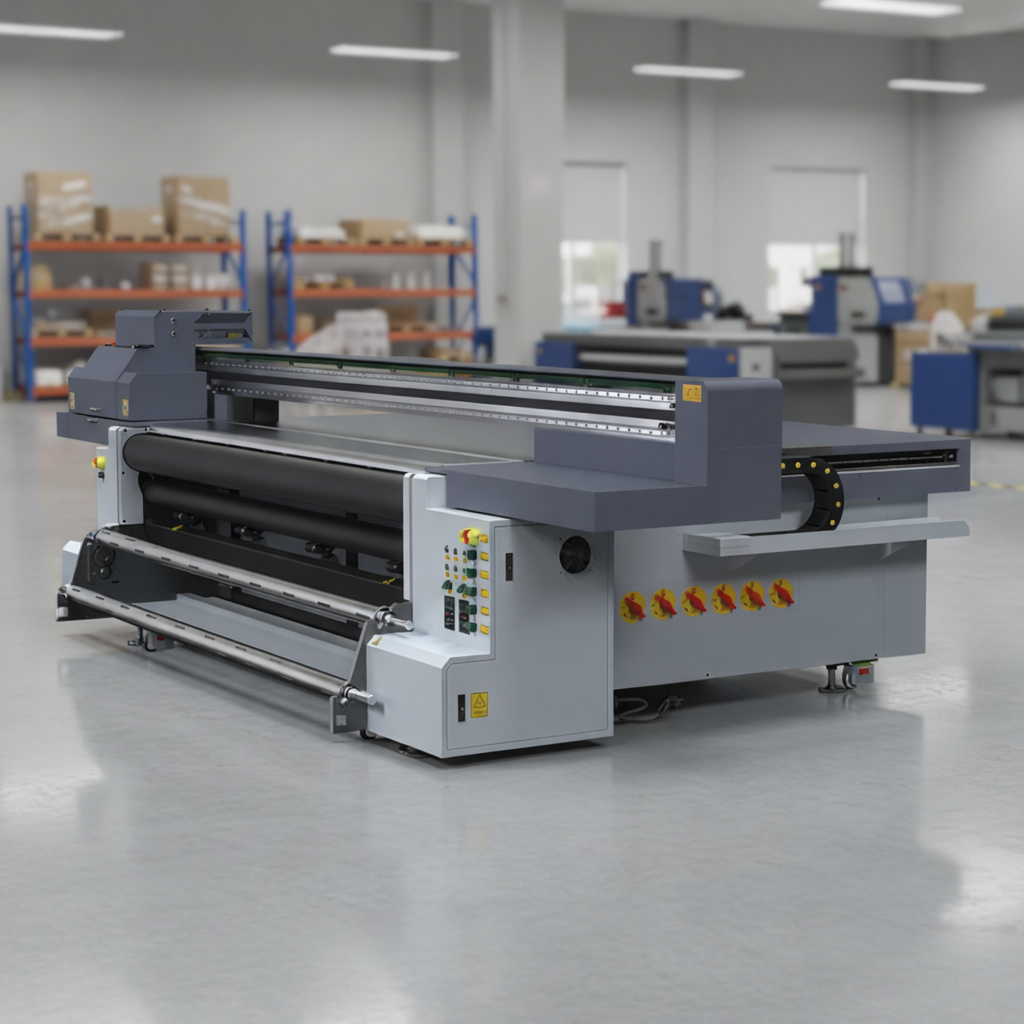

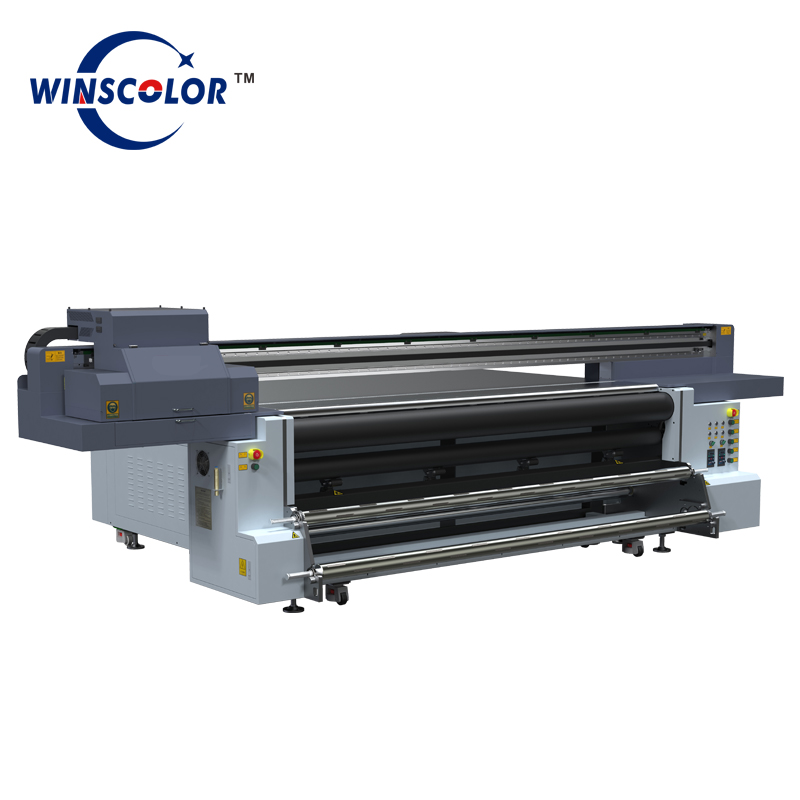

Ntek YC2513R UV hybrid printer is on the basis of YC2513L UV flatbed printer, add the roll part, which realize both flat materials and roll materials, it's also called UV flatbed and roll to roll printer, equipped with 2-16 grayscale piezoelectric industrial Ricoh Gen5/ Gen6 printheads, which meets the requirements of customers for ultra-high precision and high speed production.
Ntek UV printer, from equipment manufacturing to material recognition to safety and technical support, Ntek not only sells, but also is responsible for technical support, to remove customers' worries! Constantly create new products, new solutions, and eventually provide customers with quite effective digital inkjet printing solutions, enhance customer interests!
Broad Media Applications: Ntek UV hybrid printer can widely print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather, flex banner, wallpaper etc.
