Printing table size 2000mm×3000mm
Max material weight 50kg
Maximum material height 100mm

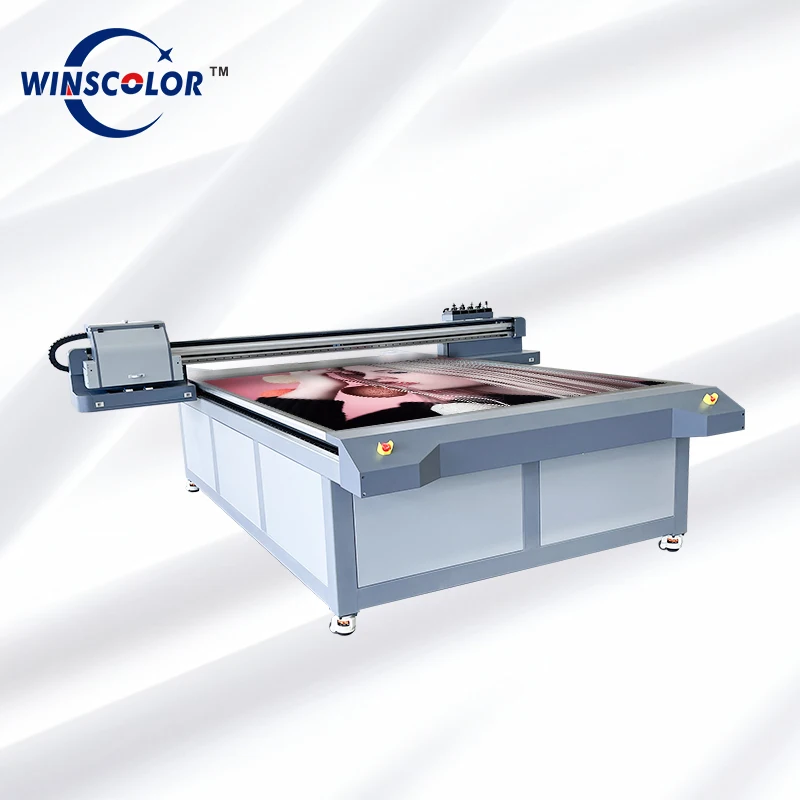

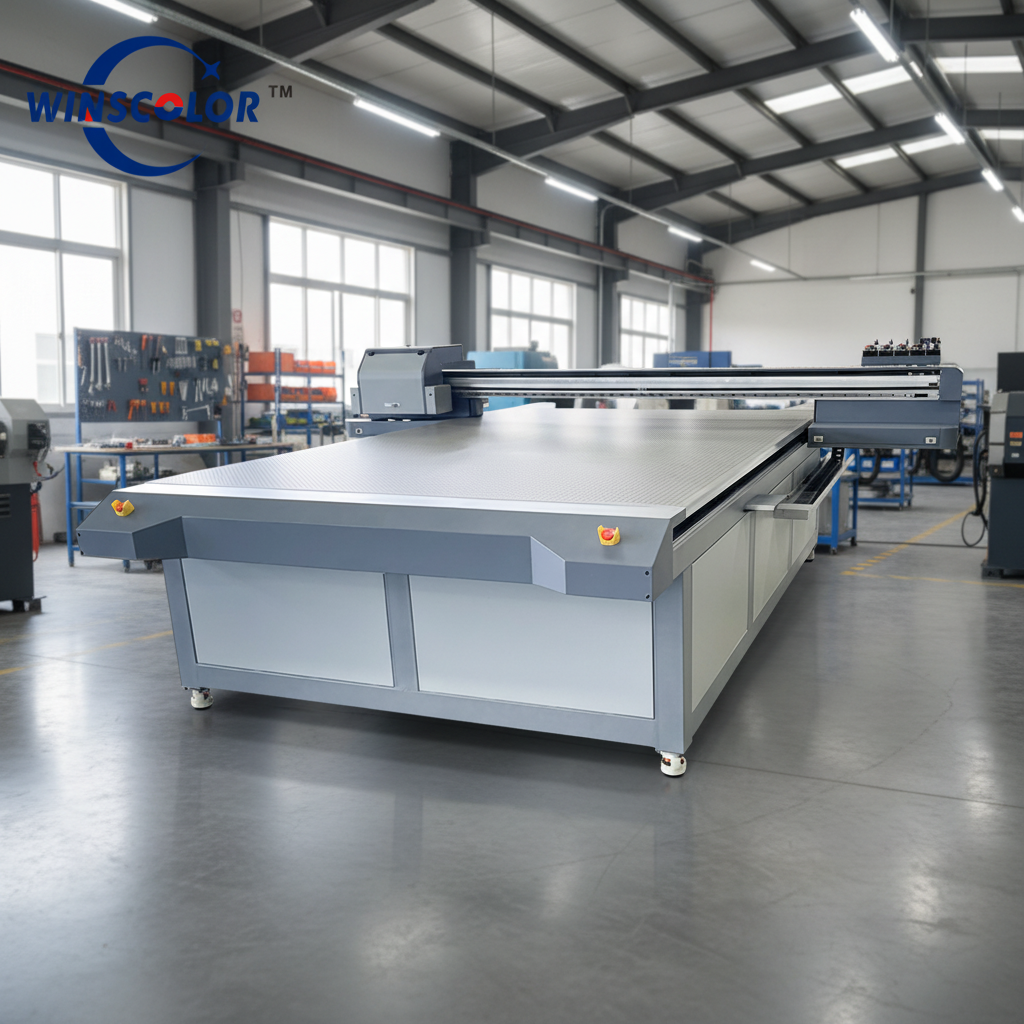

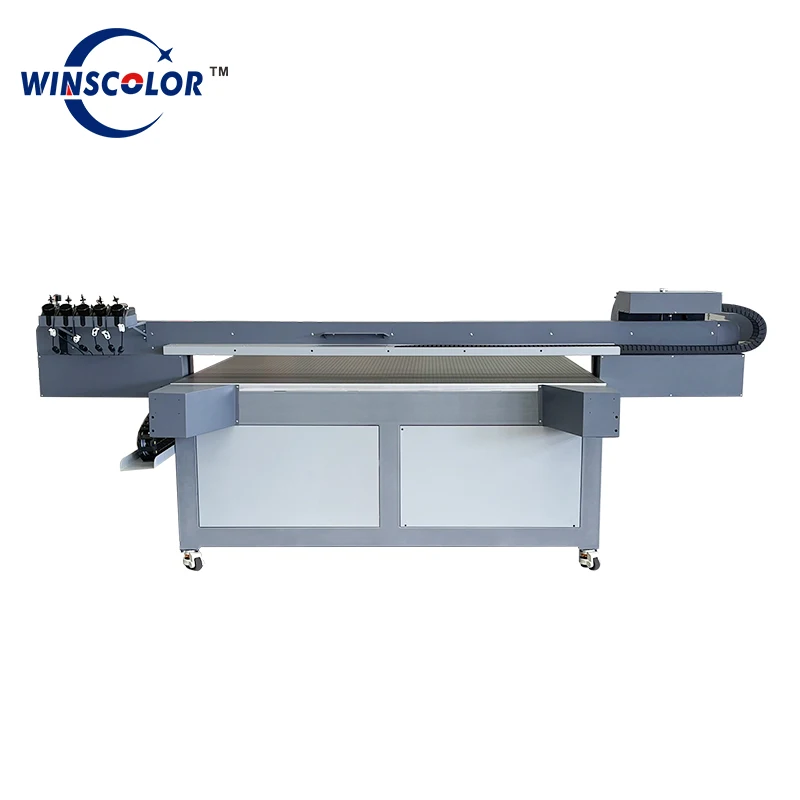

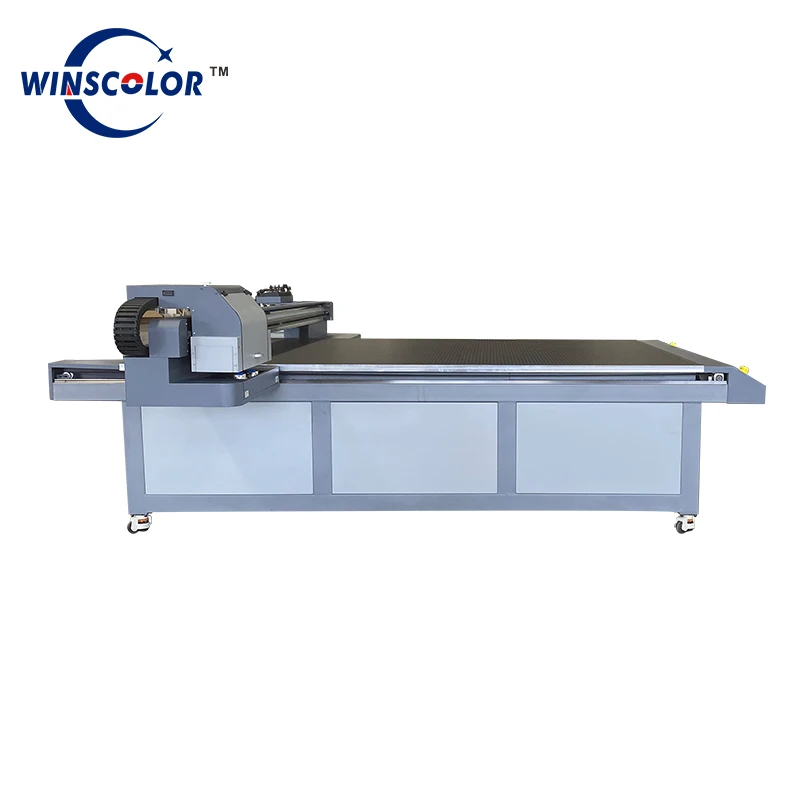

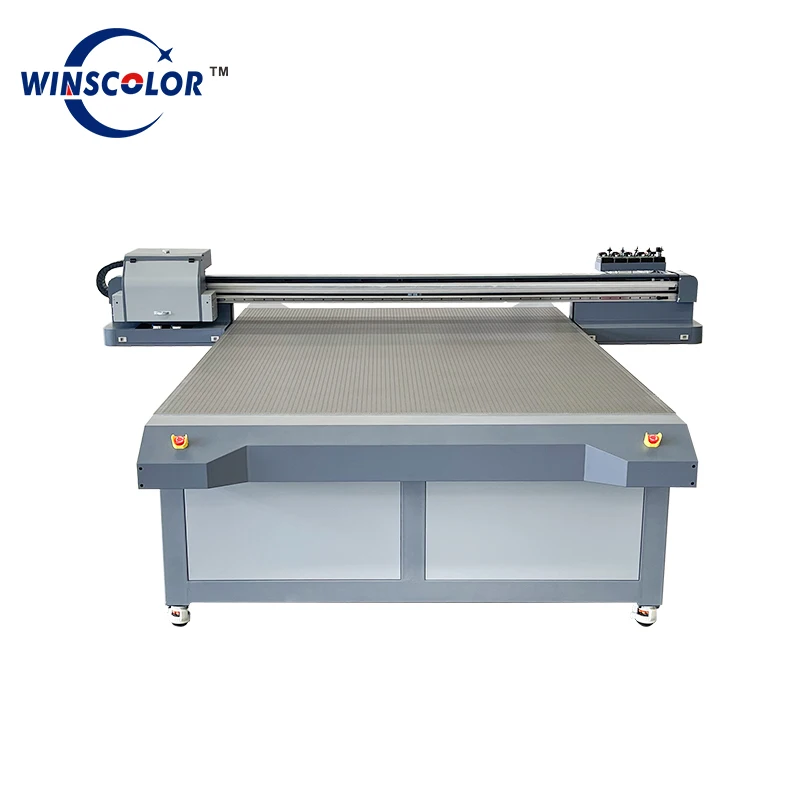

YC2030H UV flatbed printer is a cost-effective product newly launched Ntek, To build industrial-grade equipment with ingenuity, in order to improve stability, NTEK has strict requirements, from the whole machine structure to data transmission, from the application of printhead to the selection of accessories, using high-quality components and mature printing design technology, with high stability and high durability , long service life, etc.
| Product Model | YC2030H | |||
| Printhead Type | EPSON | |||
| Printhead Number | 2-4 heads | |||
| Ink Characteristics | UV Curing Ink (VOA Free) | |||

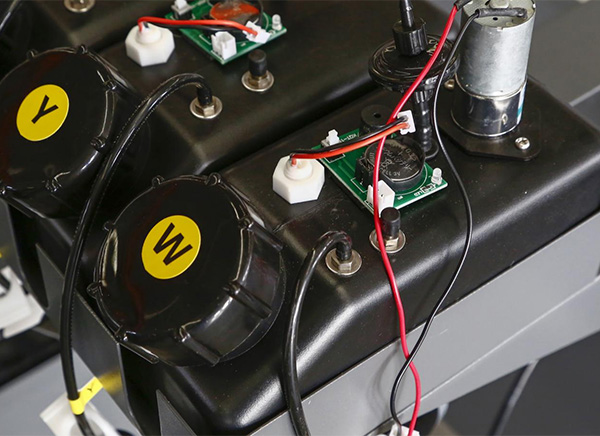

| Ink reservoirs | Refillable on the fly while printing 1000ml per color | |||
| LED UV Lamp | more than 30000-hours life | |||
| Printhead arrangement | CMYKW V optional | |||
| Printhead Cleaning System | Automatic Cleaning System | |||
| Guide Rail | Taiwan HIWIN | |||
| Working Table | Vacuum Sucking | |||
| Printing Size | 2000*3000mm | |||
| Print Interface | USB2.0/USB3.0/Ethernet Interface | |||
| Media Thickness | 0-100mm | |||
| Life of printed image | 3 years(outdoor),10years(indoor) | |||
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. | |||
| Print Resolution & Speed | 720X600dpi | 4PASS | 4-16sqm/h | |
| 720X900dpi | 6PASS | 3-11sqm/h | ||
| 720X1200dpi | 8PASS | 2-8sqm/h | ||
| RIP Software | Photoprint / RIP PRINT Optional | |||
| Power Supply | 220V 50/60Hz(10%) | |||
| Power | 3100W | |||
| Operation Environment | Temperature 20 to 30 ℃, Humidity 40% to 60% | |||

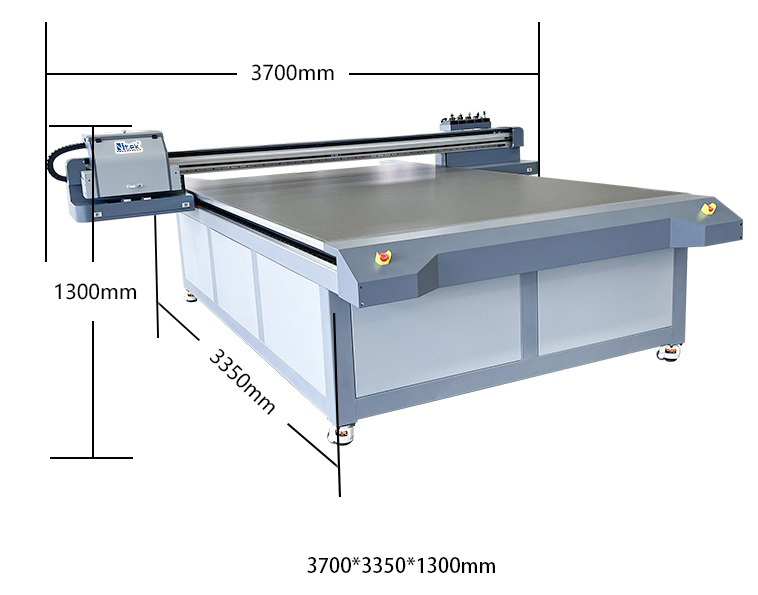

| Machine Dimension | 3.7*3.35*1.3m | |||
| Packing Dimension | 3.65*0.7*0.78m 3.9*2.25*1.18m | |||
| Weight | 1000kg | |||
| Warranty | 12 months exclude the consumables | |||

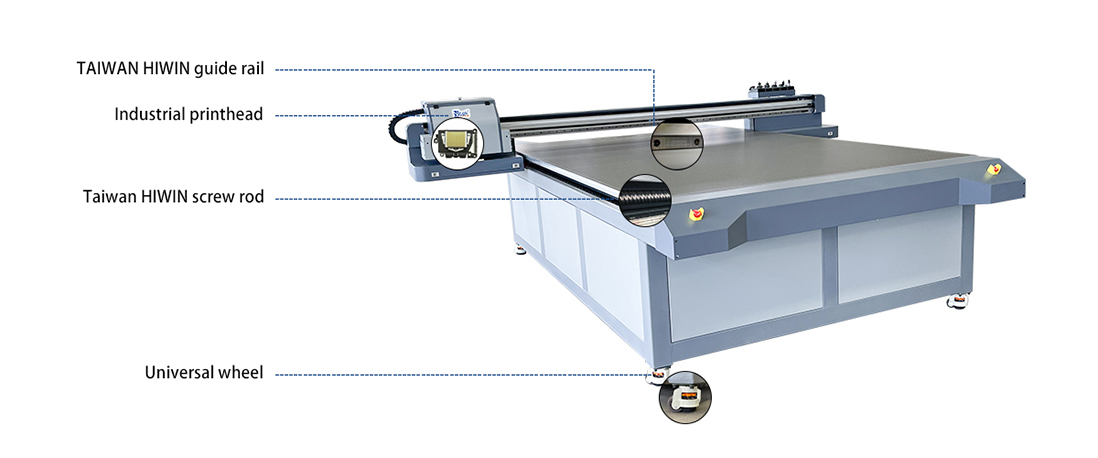

Equiped with Japanese Epson DX5/DX7/XP600/TX800/I3200 heads with 180 nozzles 6 or 8 channels, which provides a high- precision printing.
Use high precision mute liner guide rail, long service life, high stability, immensely decrease noise while printer is printing, within 40DB while printing.

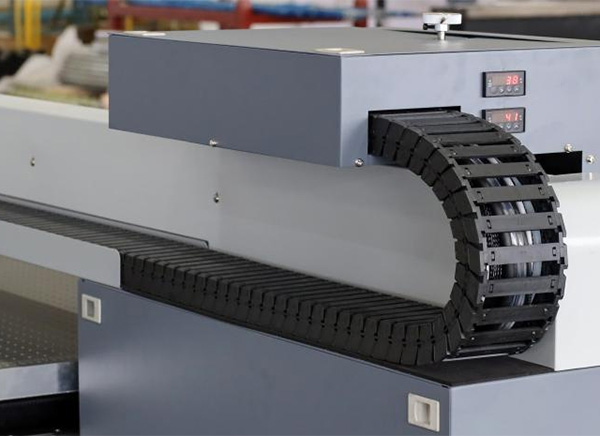

Germany IGUS Mute Drag Chain Utilize on X axis, ideal for protection of cable and tubes under high speed motion. With high performance, low noise, make the working environment more comfortable.
The vaccum suction platform is easy to operate and save energy, good for various sizes of personalized printing; With full cover for bleeding printing, it will improve the utilization of materials.

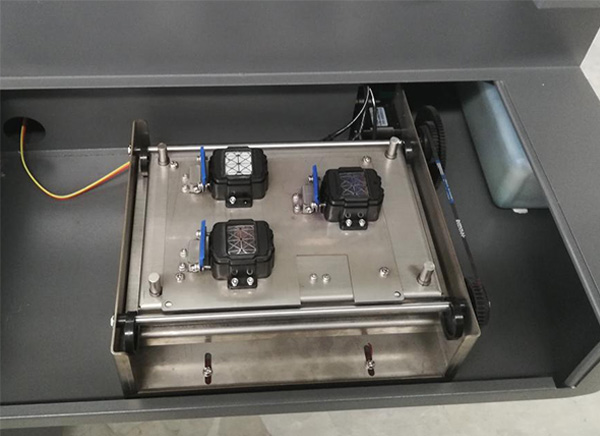

High quality Automatic ink absorption cleaning control unit. Which could greatly extend print head life span.
Use non-VOC environmental UV curing ink, clear and perfect printing quality, no bias color, no mixing color, waterproof, wear-resistant. Color with CMYK white and varnish optional for glossy surface printing.
UV printer has realized the true no plate printing, the design, the production process is simple, using the new original piezoelectric nozzle imported from Japan, to obtain high precision and resolution image color printing output, while reducing the consumption of ink. In addition, Printhead type, printhead number and printer size is optional, NTEK Meet your various printing requirements.
YC2030H UV flatbed printer suitable for advertising industry, decoration industry, Personalized printing industry and other industries, Such as widely printing on MDF, glass, ceramic tile, integrated wallboard, PVC, acrylic ,metal sheet etc. The advanced technology of color white varnish makes the material surface more smooth, 3D relief, braille printing etc to achieve vivid color printing effect.
Ntek are professional manufacturer of UV printers for 13 years with CE certificate and ISO9001 certified, strict quality inspection process and high-quality service enable our printers to be exported to the world.
